Puff Corn Snacks Processing Line

100kg/h Puff corn snacks processing line
300kg/h Puff corn snacks processing line
500kg/h Puff corn snacks processing line

Send Inquiry

Features

The corn Puff Food Production Line raw materials for high-temperature puffed food are mainly flour, corn starch, and potato starch. When food raw materials are steamed, starch undergoes gelatinization. At this time, hydrogen bonds between starch molecules are broken, and water enters the microcrystalline gaps of starch. Due to the action of high-temperature steam and high-speed stirring, starch quickly and irreversibly absorbs a large amount of water. After further cooling treatment, the starch undergoes retrogradation, and the starch particles are highly latticed, enveloping the water absorbed during gelatinization. During high-temperature treatment (frying or sand frying), water in starch microcrystals rapidly vaporizes and sprays out, promoting the formation of porous structures to achieve swelling.

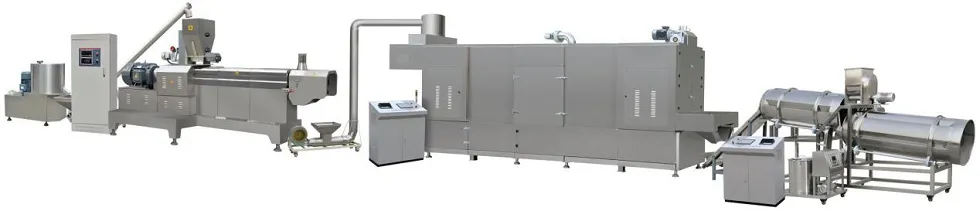

corn Puff Food machines001

Product Image

corn Puff Food001

Specification of puff corn snacks processing line:

Production line model	MC65 corn Puff Food Production Line	MC75 corn Puff Food Production Line	M85 corn Puff Food Production Line	Customized puff corn snacks processing line
Rated power	70kw	130kw	180kw	Provide customized design and production services according to production capacity requirements and product requirements
Actual power consumption	35kw	65kw	90kw
Covered area	80㎡	120㎡	150㎡
Design capacity	100-150kg/h	200-300kg/h	300-500kg/h
Water consumption	≤30kg/h	≤60kg/h	≤100kg/h
Steam consumption	0	0	0
Gas consumption	3m³/h（Gas heating type only)	5m³/h（Gas heating type only)	7m³/h（Gas heating type only)
Number of employees	2-3people	2-3people	2-3people
Main material	Food grade stainless steel/carbon steel.
Production Process	Ingredients→mixing→extrusion and puffing→baking→spray seasoning→finished product
Applicable raw materials	Rice, corn, wheat, tartary buckwheat, oats, quinoa, some beans, etc.
Product Category	Puffed snacks, cereal meal replacement food supplements, etc.
Control method	The control cabinet regulates production parameters, can be expanded and supports remote centralized control.
After-sales service	On-site guidance to install and debug equipment, and provide basic production technical guidance; one-year warranty for the entire line.
