Pet Food Production Line

China Pet Food Production Line Manufacturers Factory Suppliers

We specialize in producing all kinds of Pet Food Production Line products, mainly fish feed production line, pet chew production line, dog chew sticks machine, floating fish feed making machine, fish feed making machines, pellet machine fish feed, etc.
Our company's technical engineers have over 20 years of industry experience, can provide customers with perfect solutions. We has mature technical expertise, advanced process equipment, extensive production experience, and a complete service system.
Our products sell well in mainstream markets such as Europe, North America, Japan, South America, Oceania, and Asia. We have established long-term cooperative relationships with customers around the world, allowing customers around the world to buy high-quality products and enjoy excellent customer service.

First 12 3 4 5 Last

Company Advantages

01/

Advanced Equipment
We have more than 10,000 square meters of workshop. The company has established a trade department, a technical department, a production department, a quality inspection department, an after-sales service department, and laboratories. We operate with a fully automatic CNC production line, and are committed to providing customers with the best products and services.

02/

Well-Experienced
Our company's technical engineers have over 20 years of industry experience, can provide customers with perfect solutions. Professional engineers also can provide expertise consultations and professional advice on product selection, design, installation, and maintenance.

03/

Expansive Market Reach
Our products sell well in mainstream markets such as Europe, North America, Japan, South America, Oceania, and Asia. We have established long-term cooperative relationships with customers around the world, , and have garnered widespread acclaim from satisfied customers.

04/

Customized Services
We welcome product customization, and our team is capable of developing new products or providing technical solutions tailored to customer requirements. lf you have any special request, pls send us the details.

05/

Competitive Price
We provide competitive price and excellent customer service for all our customers. We also can offer different discounts based on your order quantity. Our pricing policies are designed to offer affordable options while not compromising on quality.

06/

24-hour Online Customer Service
Our customer service is available online 24 hours a day. After receiving the service information or feedback from the customer, we will reply and address the feedback in the shortest time. Our customer service team can provide customers with all support on products, customization, after-sales, etc. at any time.

Introduction to Pet Food Production Line

Pet food production line is used to produce different kinds of dog food, cat food, floating fish feed, sinking fish feed and so on. The line uses a screw extruder to produce dog food in different shapes. The basic raw material is high-expansion corn flour grains, along with other nutrients like bone meal, meat, protein, vitamins, and fiber.
Pet food production line is mainly made up with raw materials crushing system ,mixing system,extrusion system, drying system, flavoring system and packing system. This pet food plant with reasonable design and with high automation.The shape of pet dog food could be round bone shape, star shape, triangle shape, heart shape and so on,you just need change mold to get different shape.The various shape and taste can meet the different requirements of pet.

Advantages of Pet Food Production Line

Precise control of process parameters and automation to ensure optimized particle quality: gelatinization, expansion, texture and consistent quality. These quality standards can be achieved because the screw ensures uniform processing and forward pumping. The processing of viscous paste does not depend on the friction between the screw and the barrel. The embedded automatic temperature control and adjustment system, modular screw configuration and screw speed are easy to program, which helps to improve the performance of the production line.
Smart pet food extruder: recipe management (recording, access, supervision), process management (start/stop), installation of sensors, control and maintenance. Advanced production line automation helps reduce operating costs and promote consistent nominal production.
Creative shapes and finishing of products with innovative shapes and different textures (co-extrusion) by using special molds.
The composition is flexible, and various raw materials with high fat content can be processed when needed.
Use standard parts of extrusion and drying equipment to reduce maintenance and easy access to different machine components.
Specially designed by our expert engineers, with advanced automation functions, which can ensure accurate process control to achieve product quality that is easy to reproduce.
From 100 kg/h to 2000 kg/h.

Types of Pet Food Production Line

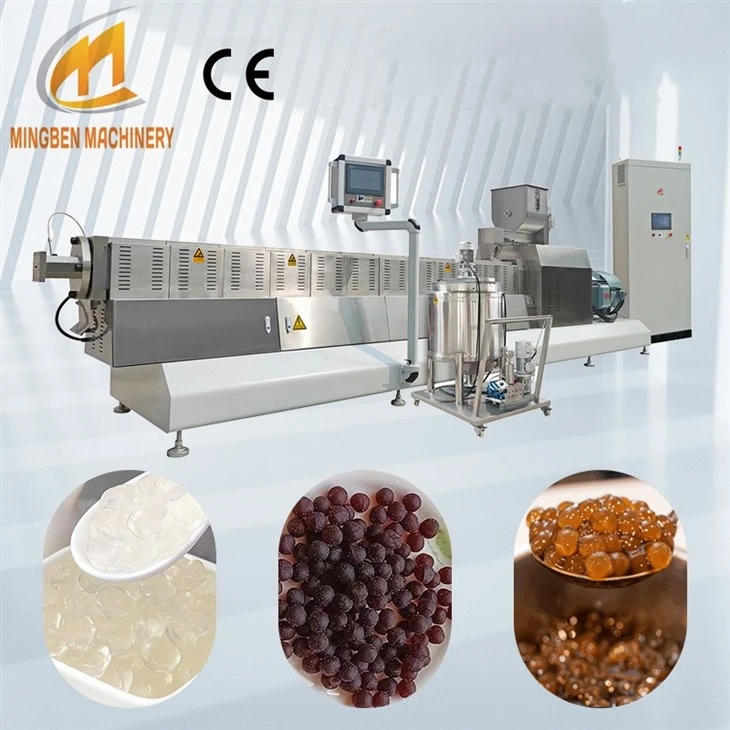

Machine For Making Tapioca Pearl For Bubble Tea

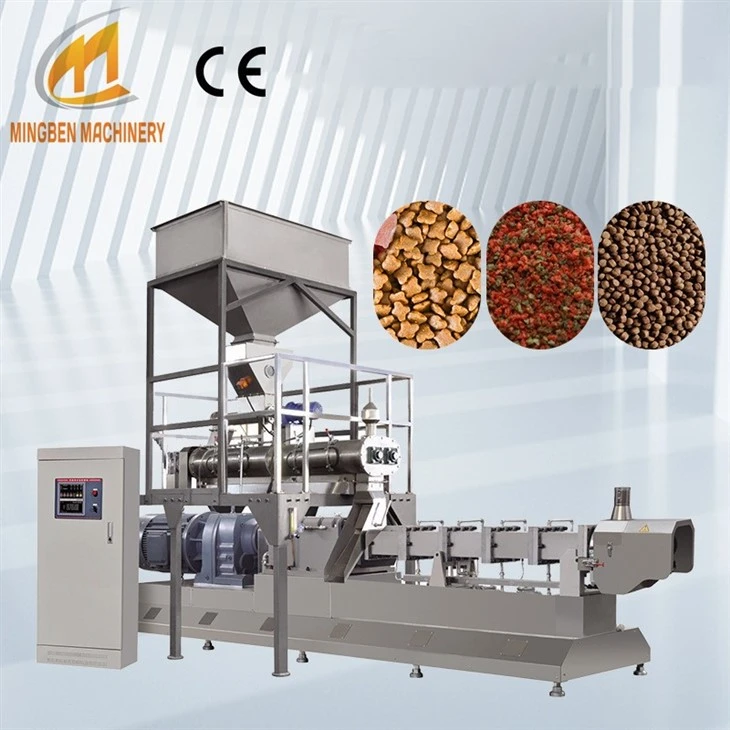

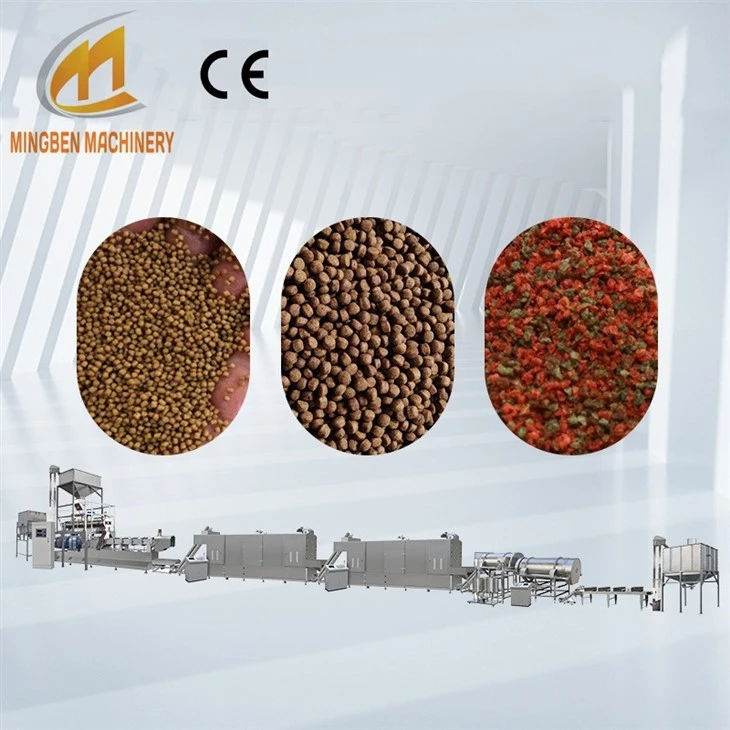

Fish Feed Production Line
Our fish feed production line is the complete procedure of feed pellet production with capacity of 300-400kg/h. This line is designed for making commercial pellets from corn, maize, grass, grains, protein, molasses and so on, and final pellets with different shapes, unique flavor, rich nutrients and fine texture, are widely used as aquatic and pet feed like goldfish, tropical fish, catfish, shrimps, dog, cat and etc.. Super automation control, high production efficiency, our fish feed production line is the best choice for medium and big sized feed mills and breeding farms. Complete pellet production lines with different capacities are also available to meet customers specific demands.
Advantages:

The modular structure is convenient for assembly and disassembly, facilitating shipment and installation.
It is PLC-controlled, with an available alarm device, making operation simple and convenient.
Final pellet shapes and sizes can vary by changing the mold. For fish and shrimp feed pellets, the floating time in water can be adjusted through extrusion degree modification.
Processing occurs at high temperatures in an instantaneous process, significantly reducing nutrient decomposition in feed. Simultaneously, it enhances protein digestibility (through protein degeneration) and starch digestibility (through starch pasting) to improve the product's palatability.
To ensure quality and capacity, a special pressure-increasing device is incorporated. Additionally, the electric heating device improves feed expansion rates.

Pet Chew Production Line
A pet chew production line uses extrusion technology to create pet chewing food. The line can produce dog chew snacks and semi-moist pet food in various shapes and sizes.
The production line can use starch, wheat flour, and food additives to create pet chews in innovative shapes, such as: Strip, Stick, Twist, Bone, Core filled bar. The production line can also produce double-color dog snacks and twist treats.
Advantages:
The production line adopts double screw extrusion. Using high hardness screws. Customize molds with different shapes based on the product.
Independent control cabinet control, optional button control and PLC touch screen control.
The equipment material is made of food grade stainless steel, which is safe and environmentally friendly.
The production line has reliable quality, fewer vulnerable parts, and Long usage time.

Animal Feed Pellet Machine
An animal feed pellet machine, also known as a feed pellet mill or fodder pellet mill, is a piece of equipment that can turn materials like corn, soybean meal, rice husk, straw, and grass into small pellets.
Animal feed pellet machine is widely used in large, medium and small aquaculture farm, grain feed mills, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers for large, medium, small feed mills use.
Advantages:
Simple structure, wide adaptability, small footprint, and low noise.
Powdery feed, grass powder without liquid or a little liquid to add can be made into pellets. The water content of pellet feed is basically the moisture content of granulated feed, which is more conducive to storage.
Processing dry materials, the production of feed particles has high hardness and a smooth surface.
Adjustable length, diameter Φ 2 ㎜ - 10 ㎜ can all be produced. Grass granules, pure grain pellets, and mixed granules can all be processed.
The pellet formation process can cause the degeneration of the pancreatic enzyme resistance factor in grains and legumes, reducing adverse effects on digestion. It can also eliminate various parasitic ova and other pathogenic microorganisms, reducing the occurrence of insect and digestive system diseases.

Dog Chew Food Processing Line
The Dog Chew Food Processing Line utilizes starch, wheat flour, and food additives to create innovative shapes of pet chewing food through extrusion technology. These shapes include strips, sticks, twists, bones, core-filled bars, and more.
This food not only offers essential nutrition to dogs, such as protein, fat, and vitamins, but also caters to their natural instincts. It promotes strong teeth, cleans the mouth and teeth, and helps prevent diseases.
Advantages:

The layout is horizontally oriented with a simple structure, providing reliable and convenient control, along with intuitive operation.
The mesh belt speed is controlled by a frequency motor, allowing for adjustable drying quality.
The components in contact with food are made entirely of stainless steel, ensuring corrosion resistance.

Working Principle Of Pet Food Production Line

Mix: The mixing process is a key process in pet food production line. The basic process is to weigh the raw materials of different weights according to the formula, then pour them into the crusher and smash them, and then temporarily store all the materials in the storage bin. Then all the ingredients are ready, put them in the blender and mix them.
Extrusion: Extrusion is a high temperature and short time heat treatment process. It can not only reduce the degradation of food nutrients, improve the digestibility of protein and starch, but also destroy anti-nutrients and microorganisms. Can produce round, triangle, flower shape, bone shape and other shapes of dry pet food through different molds (templates) of the feed extruder. In pet food production line, fat is usually added to improve the palatability of pet food, which is carried out during the conditioning process. In addition, in order to make pet food tablets have different colors, manufacturers usually add pigment water in the extrusion chamber.
Dry: The drying part is mainly used to remove moisture from the extruded pet food. The extruded material has a soft texture and a water content of 20-30%. After drying, the moisture of the finished product is controlled at 8%~10%, which can ensure the storage of the material within a certain period of time.
Add Grease: Oil is the best source of energy, so 2%-40% of oil can be added to the formula according to the growth needs of the pet. We recommend that the fat content in the formula, that is, the total oil content in the extruder should be kept within 12%. If the oil content is required to exceed 12%, the hardness of the pellets will be significantly reduced. If the extruded material needs to contain more than 12% oil, it is recommended to add additional oil after drying. It can be used under normal pressure or vacuum spraying, depending on the amount of oil added. The external spray will make the appearance of the pet food flakes more attractive. In addition to oil, some powdery attractants are also sprayed to increase the palatability of pet feed.
Cooling And Screening: The main purpose of the cooling section is to cool the dried material from high temperature to close to room temperature and take away part of the moisture. In addition, during this process, unqualified food tablets will be separated from eligible foods.

Certifications

Our equipment has obtained the national inspection exemption qualification and meets the requirements of the European Union. We have obtained the CE certificate. The quality of our products is highly praised by customers.

productcate-1-1

Our Factory

We have more than 10,000 square meters of workshop. The company has established a trade department, a technical department, a production department, a quality inspection department, an after-sales service department, and laboratories. We operate with a fully automatic CNC production line, and are committed to providing customers with the best products and services.

Frequently Asked Questions

Q: What points should you consider when choosing Animal Feed Pellet Machine?

A: Firstly, determine the desired volume of feed pellets you intend to produce.

Consider the animal species you are raising and the animal feed formula to select the appropriate animal feed pellet making machine. For instance, if you aim to produce feed pellets with the same diameter, opt for a machine with a thin die mold for rabbit, cattle, or sheep feed pellets. Conversely, for pig, fish, or chicken feed pellets, choose a machine with a thicker die mold. The rationale behind this choice lies in the fact that producing pig, fish, and chicken feed pellets requires more concentrated feed ingredients, resulting in smaller resistance during pelletization and lower power consumption. On the other hand, making rabbit, cattle, and sheep feed pellets involves a higher proportion of grass meal, around 50%-60% of total feed ingredients, leading to increased suppress resistance, higher power consumption, and consequently, lower output per unit compared to fish and chicken feed pellet production.

Opt for an animal feed pellet machine with rollers and dies made from wear-resistant materials like CrMnTi alloy steel or stainless steel to ensure a long service life.

The finished feed pellets produced by the animal feed pellet making machine should exhibit a smooth appearance and moderate hardness. The breakage rate should be less than 4%, and the moisture content should not exceed 10%.

The temperature of the feed pellets upon discharge from the animal feed pellet making machine should range between 60-80℃, staying below 80℃. Exceeding this temperature may damage the micro-elements added to the feed ingredients during the pelletizing process, leading to a reduction in the nutrient value of the feed pellets.

Q: What is the production process of Animal Feed Pellet Machine like?

A: Mixing: Material mixing plays a pivotal role in feed processing. Achieving more mixing cycles within a fixed time is possible with our intermittent mixer, designed with clamping capacity and intelligent pulp page. This design reduces the mixing time to just 90 seconds. The optional and precise liquid adding equipment ensures the uniform distribution of ingredients for recipe mixing.

Extruding: Our extruders are configured based on the specific characteristics of your raw material recipe and the requirements of the final product. During the extrusion process, solid material is mixed and fed through the twin-screw movement to different pressure areas. It undergoes heating, cooking, bleaching, and shaping through the heating cylinder, ultimately being cut through the fixed mold for granulation.

Drying: In a continuous conveying process using high-temperature air and precise control, incoming particles are preheated, expanded, and evenly spread at the appropriate bulk density. Uniform heating ensures a high expansion rate and crisp taste. Hot air circulation reduces costs by enhancing energy efficiency.

Sieving: The new particle sieving device utilizes vibration throughout the entire vibrating bed, maintained by the shock-absorbing ring for stability. Uniformly shaped particles are sieved out, while larger particles are retained. The device, with its simple structure, achieves sieving of particles in different sizes.

Sense Embellish: Fine layers enhance the appearance, texture, and aroma of the final product, making it more appealing to animals. Coating can be applied to add flavor and enhance the product's high energy. Our layer solution ensures a uniform coating with a short cycle time.

Cooling: Passing through multilayer circular airflow with a stable wind speed, the finished product quickly dissipates internal heat to prevent adhesion and gelatinization in a shorter time. This facilitates easier transport and packaging.

Q: How does the extrusion process contribute to pet food production?

A: Extrusion shapes and cooks the pet food, enhancing its texture and ensuring optimal nutrient retention.

Q: What are the tips for using Floating Fish Feed Extruder Machine?

A: When the fingerlings are stocked, when the water temperature is low, the growth is slow, and the size is small, the particle diameter of the feed should be controlled at about 2mm; when the temperature rises and the growth of fingerlings are accelerated, the medium-term feed particle diameter should be 3–3.5mm, and later in 4–4.5mm. Therefore, when using the fish feed pellet machine to process fish pellet feed, the size of the feed pellet should be adjusted according to the type of fish and different growth stages to achieve the best feeding effect.

During the use of the feed pellet machine, the preventive medicines, and raw materials can be mixed and pelleted according to the current epidemic diseases and fish disease occurrence seasons, which can effectively prevent fish diseases and improve the survival rate of aquatic products.

Q: What is dog food production line?

A: Dog Food Production Line adopts starch, wheat flour and food additives to produce innovative shapes pet chewing food by extrusion technology, such as strip, stick, twist, bone, core filled bar and so on.

This kind of food not only provides nutrition to dogs, like protein, fat, vitamin, etc, but also satisfies the dog nature hobby, benefits its strong teeth, cleans mouth and teeth, and prevent disease.

Q: Why is the feed pellet produced by Animal Feed Pellet Machine not hard enough?

A: Feed hardness is the resistance of feed to deformation caused by external pressure. Insufficient feed hardness will cause deformation of the feed during handling, thereby affecting the appearance of the feed. As a result, the feed is dissolved in the water before it is ingested, or it may be because the water is large, the feed is not easy to store, and it is prone to mildew.

ReasonSolutionThere is a large difference in the moisture content inside and outside the particles & the moisture content of the particles is highExtend the drying timeFast high-temperature dryingUse low-temperature slow dryingInsufficient granular starch contentIncrease starch content in formulaSolution of soft feed pellet

Q: What are the economic benefits of using Floating Fish Feed Pellet Machine?

A: Cost Savings in Feed Production: Benefits of Using Fish Feed Pellet Machines:

1. Bulk Production: Fish feed pellet machines yield large quantities of feed in a short time, thereby reducing per-unit labor costs.

2. Resource Optimization: These fish feed extruder machines efficiently utilize various ingredients, including cost-effective agricultural by-products.

3. Energy Efficiency: Modern fish feed pellet machines are designed to consume less energy, resulting in savings on electricity bills. Fish feed machines for sale ensure cost-effectiveness.

Q: What are the sustainable advantages of Fish Feed Pellet Machine?

A: Fish feed pellet machines efficiently process a diverse range of ingredients, enabling farmers to use sustainable and locally-sourced materials. This helps reduce the carbon footprint associated with transporting feed ingredients.

Unlike traditional fish feed, which often relies on wild fish as a primary ingredient, fish feed plants enable the use of alternative protein sources. This lessens the strain on wild fish populations and supports marine biodiversity.

Q: How does the Fish Feed Extruder Machine work?

A: Fish Feed Extruder Machine works by heating and mixing raw ingredients to create a dough-like mixture. The mixture is then forced through a shaping die to create the desired pellet size and shape.

A fish feed extruder machine is used to create pellets from grains, soybeans, cereals, and other materials. The pellets are used as food for fish, shrimp, pets, and other aquaculture.

Q: What are the precautions for using Fish Feed Extruder Machine?

A: Stay away from the feed inlet when the machine is running. When adding raw materials, operators should use a stick instead of their hands.

Ensure that raw materials are added before starting the machine.

In case of a blockage, promptly turn off the extruder.

Regularly check the tightness and elasticity of the belt to prevent capacity decrease due to belt slipping.

Ensure regular changes of lubricating oil for the machine.

As one of the leading pet food production line manufacturers and suppliers in China, we warmly welcome you to buy cheap pet food production line from our factory. All machines are with high quality and competitive price. Contact us for more details.
