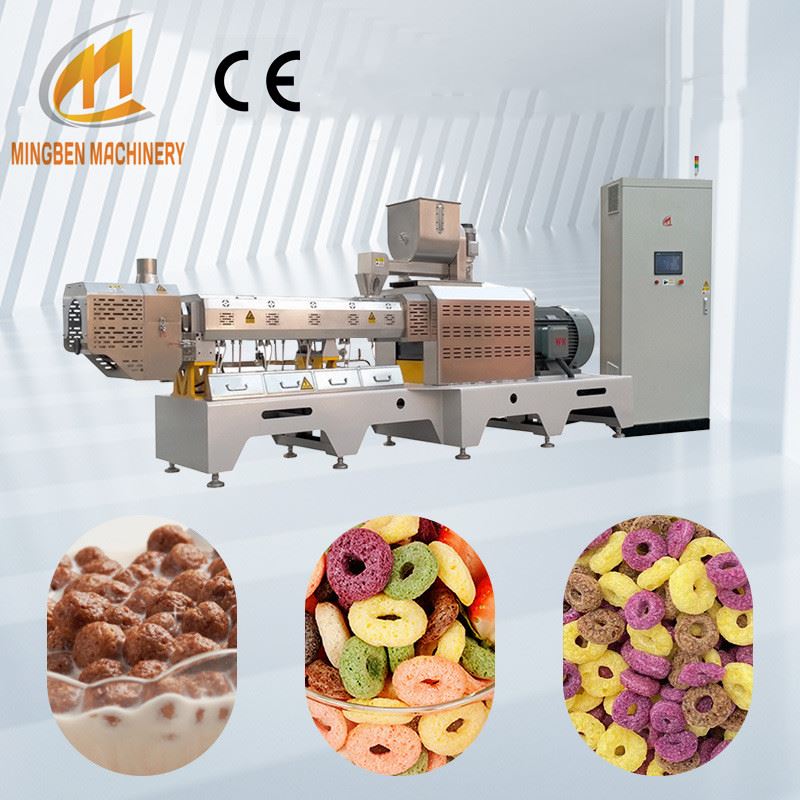

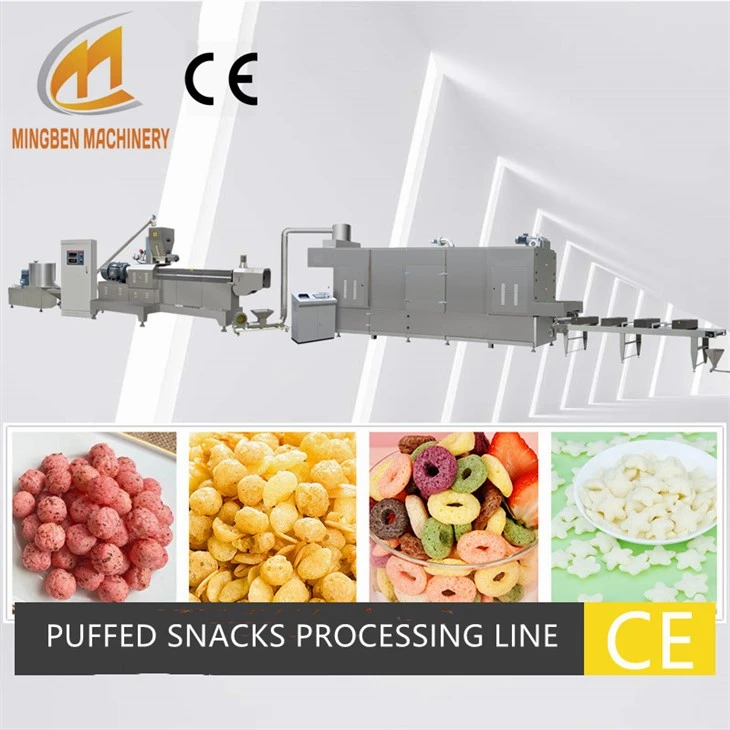

Puff Corn Ring Making Machine

The most commonly used processes for puffed food include extrusion, roasting, frying, and other types.
The puffed snacks produced by Puff corn ring making machine are extruded puffed foods. We offer different models of Puff corn ring making machine.

Send Inquiry

Features

The most commonly used processes for puffed food include extrusion, roasting, frying, and other types.

The puffed snacks produced by Puff corn ring making machine are extruded puffed foods. Extrusion expansion is the process of using the principle of high-temperature extrusion to squeeze raw materials through a screw, leaving the material in a high-temperature and high-pressure state. The material is squeezed out through smaller pores at the discharge port, and the principle of water vaporization is applied to make the material extremely expand, forming a loose tissue puffed food.

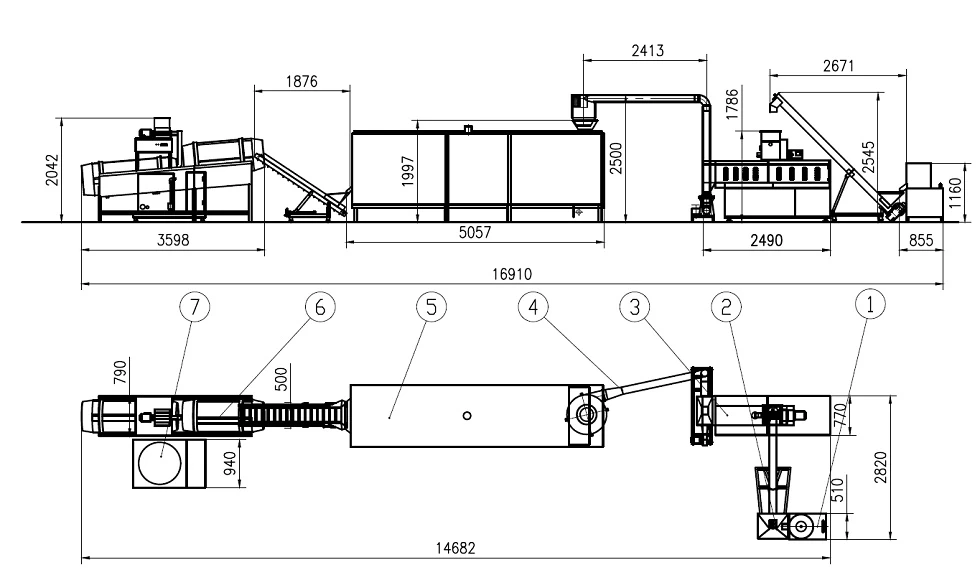

corn Puff Food machines001

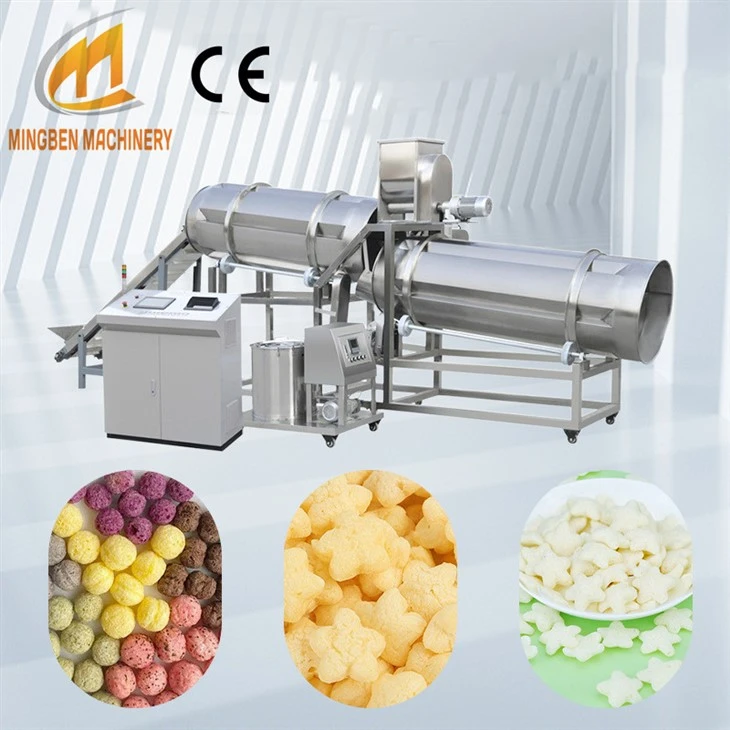

Product Image

corn Puff Food001

Specification of Puff corn ring making machine:

Production line model	MC65 corn Puff Food Production Line	MC75 corn Puff Food Production Line	M85 corn Puff Food Production Line	Customized Puff corn ring making machine
Rated power	70kw	130kw	180kw	Provide customized design and production services according to production capacity requirements and product requirements
Actual power consumption	35kw	65kw	90kw
Covered area	80㎡	120㎡	150㎡
Design capacity	100-150kg/h	200-300kg/h	300-500kg/h
Water consumption	≤30kg/h	≤60kg/h	≤100kg/h
Steam consumption	0	0	0
Gas consumption	3m³/h（Gas heating type only)	5m³/h（Gas heating type only)	7m³/h（Gas heating type only)
Number of employees	2-3people	2-3people	2-3people
Main material	Food grade stainless steel/carbon steel.
Production Process	Ingredients→mixing→extrusion and puffing→baking→spray seasoning→finished product
Applicable raw materials	Rice, corn, wheat, tartary buckwheat, oats, quinoa, some beans, etc.
Product Category	Puffed snacks, cereal meal replacement food supplements, etc.
Control method	The control cabinet regulates production parameters, can be expanded and supports remote centralized control.
After-sales service	On-site guidance to install and debug equipment, and provide basic production technical guidance; one-year warranty for the entire line.
