Products
Tortilla Chips Production Line
We supply tortilla chips production line. At present, our company mainly engages in the application of puffing machinery and equipment in the fields of leisure puffed food, pet food, breakfast cereal food, five grain nutritional powder, modified starch, etc. After years of accumulation, we have gained rich experience.
Features
tortilla chips are a delicious dish. It's a snack made from corn. Corn tortilla chips are made from corn, vegetable oil, salt, and water. The kneaded corn dough is first cut into wedges and then fried or baked. We use twin-screw extruders tortilla chips production line instead of traditional production processes to improve efficiency and output. Another similar fried corn snack is corn chips. We offer Double screw extruder machine. The common models include the 65 model puffing machine and the 75 model puffing machine. These devices typically require a voltage of 380V and power ranging from 30KW to 70KW. The external dimensions and weight of the equipment also vary.
Product Image

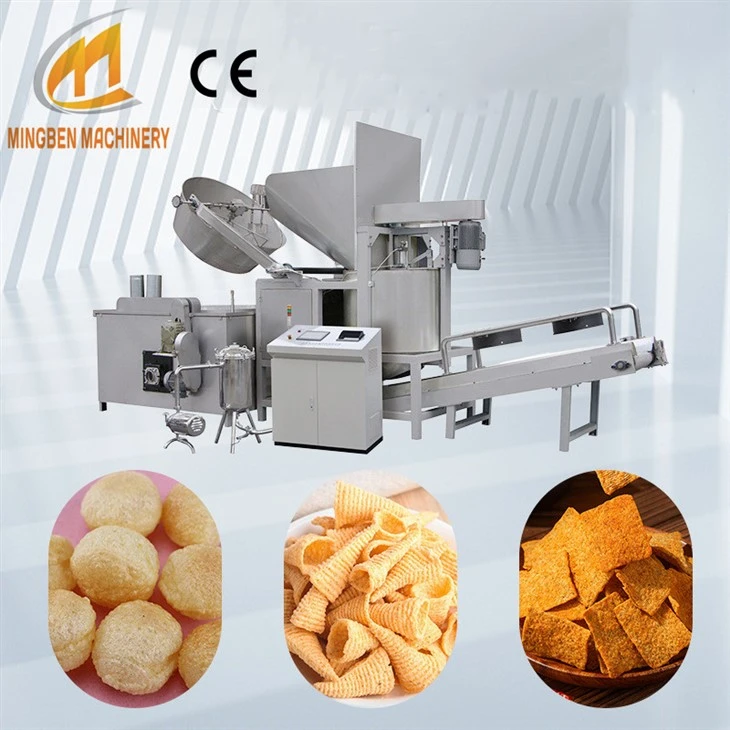

Product Automation Production Process
|
Production Line Model |
M65 tortilla chips production line |
M70 tortilla chips production line |
M75 tortilla chips production line |
|
Rated power |
100kw |
120kw |
160kw |
|
Actual power consumption |
50kw |
60kw |
130kw |
|
Floor area |
60m2 |
70m2 |
150m2 |
|
Design capacity |
100-150kg/h |
150-200kg/h |
200-300kg/h |
|
Number of employees |
2-3 person |
2-3 person |
2-3 person |
Maintenance and upkeep
1. Regularly check whether the fixing bolts of each connecting flange, distribution box, and gearbox are loose, and if so, tighten them.
2. The gearbox should replace the lubricating oil every six months, and the oil level should be between the oil level gauge and the oil level line. The lubricating oil should be HJ-40 and HJ-50 mechanical oil.
3. The distribution box should be cleaned and lubricated every two months, and replaced every 800 hours thereafter. The lubricating oil is HJ-40 mechanical oil.
4. Regularly check the working condition of the rotary cutting blade. If it is worn or damaged, please replace it in a timely manner to avoid affecting the quality of product molding.
5. If the machine is not turned on for a long time, please apply oil to the mold head, screw, and other components to prevent rust.
6. The electrical wiring of the machine should be checked once a week. All wiring must not be loose or dusty. Insulation resistance (not less than 0.5M Ω) and grounding resistance should be checked every six months.
7. If the main engine runs continuously for 20 days, the wear of the thrust bearings in the distribution box should be checked. If bearing wear or excessive clearance is found, please replace it in a timely manner.
Our Service:
Pre-Sale Service*Always check and consult support. *Provide sample testing support. *Check out our factory. *Provide customized services to match machines based on customer product materials, usage dimensions, and market positioning. |
After-Sale Service*Provide professional consultation on market, equipment, processes, raw materials, packaging, and other aspects. *Engineers are sent overseas for overseas services. *Assist in selection, process design, and factory layout optimization. *Customizable design, manufacturing, debugging, and application experiments according to customer needs. |
FAQ:
Q: What are the reasons for choosing us?
A: Our company has a highly efficient, professional and efficient manufacturing factory, an experienced team, a large amount of inventory, and a short delivery time. Dedicated to meeting customer needs.
Q: Can you provide the detailed formula of the product?
A: Yes, we can provide customers with Tortilla Chips product formula, and we can also tailor the effects that customers want according to
customer needs.
Q: How is your after-sales service?
A: We will provide customers with pre-sale, mid-sale and after-sale service, debug machines for customers, guide operation, repair
and maintenance, and solve various problems.
Q: What is the input voltage of the Tortilla Chips Production Line?
A: 380V/50Hz or customized.
Q: What is the delivery time for Tortilla Chips Production Line?
A: 30 working days from the date of receipt of the deposit.
Q: What is the total power of this Tortilla Chips production line?
A: M65 tortilla chips production line: 100kw; M70 tortilla chips production line: 120kw; M75 tortilla chips production line: 160kw
Q: What is the capacity of the Tortilla Chips production line?
A: 100kg/h; 200kg/h; 300kg/h
Q: Do you provide installation services?
A: We provide on-site installation services.
Packing & Shipping:
The tortilla chips production line will be packed by wooden cases or packing film.
Loading Port: Qingdao, China.
Our CE certificate
