Products
TVP Soya Chunks Machine
Model: MG 35; MG65; MG75
Power: 25kw; 75kw; 110kw
Output: 10kg/h; 100kg/h; 300kg/h
Features
The TVP soya chunks machine uses low-temperature soybean meal, soybean protein isolate, gluten (wheat protein), pea protein and other plant based high protein materials as the main raw materials, and uses the extrusion process to produce plant based meat products or semi-finished products with high toughness, loose expansion, rich in layered fibers and similar to meat products, such as sheet/column/granular brushed protein and tissue protein. The Tvp soya chunks machine molding system specially made according to the characteristics of plant protein materials expands and extrudes the products in sheet or column shape, and cuts them for molding.

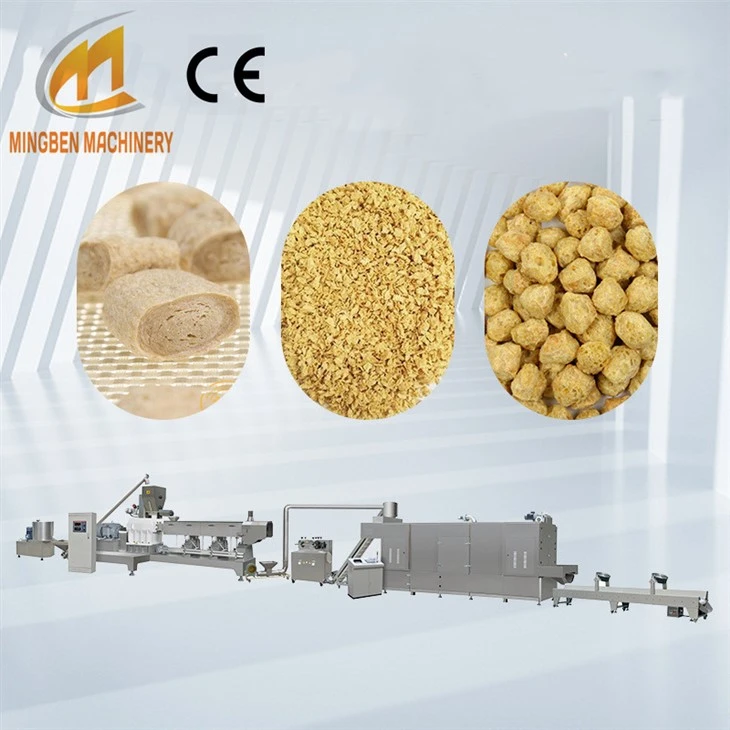

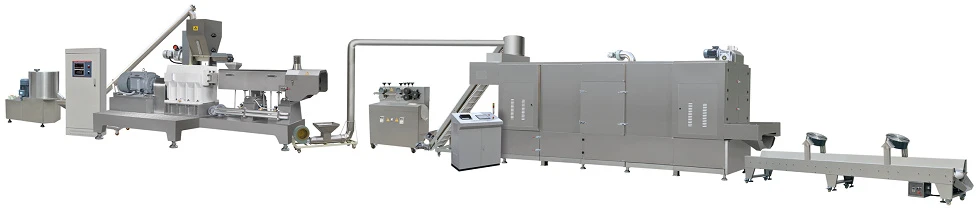

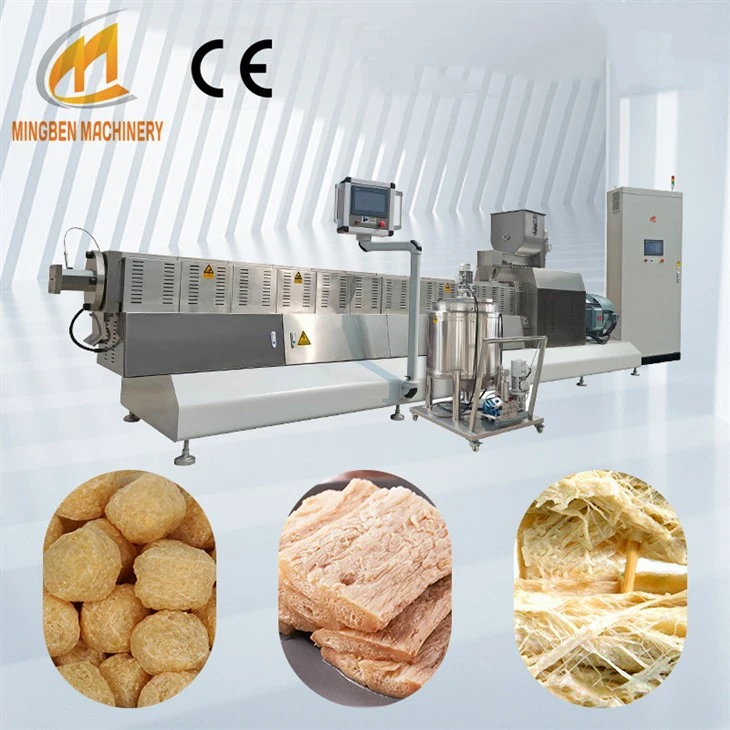

Product Image
Product Automation Production Process
|
Production line model |
MG35 tvp soya chunks machine |
MG65 tvp soya chunks machine |
MG75 tvp soya chunks machine |
|
|
Rated power |
50kw |
150kw |
220kw |
|
|
Actual power consumption |
25kw |
75kw |
110kw |
|
|
Covered area |
20㎡ |
100㎡ |
120㎡ |
|
|
Design capacity |
15-30kg/h |
100-150kg/h |
200-300kg/h |
|
|
Water consumption |
≤10kg/h |
≤50kg/h |
≤100kg/h |
|
|
Gas consumption |
0 |
0 / 6m³/h(Gas drying only) |
0 / 10m³/h(Gas drying only) |
|
|
Number of employees |
1-2people |
2-3people |
2-3people |
|
|
Main material |
Food grade stainless steel/carbon steel. |
|||
|
Production Process |

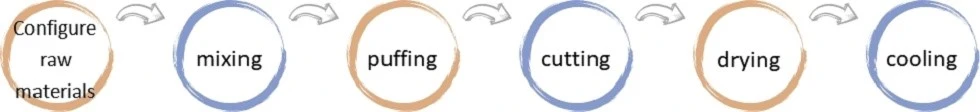

Ingredients→mixing→extrusion and puffing→cutting and forming→drying→cooling→finished product. |
|||
|
Applicable raw materials |
Soy protein, wheat protein, pea protein, rice protein, soybean meal, etc. |
|||
|
Product Category |
Flake, columnar, granular brushed protein, tissue protein. |
|||
|
Control method |
The control cabinet regulates production parameters, can be expanded and supports remote centralized control. |
|||
|
After-sales service |
On-site guidance to install and debug equipment, and provide basic production technical guidance; one-year warranty for the entire line. |
|||
Product Advantages
1. Tvp soya chunks machine uses Modular modular screw. They are very hard, wear-resistant, and have a long service life.
2. This Tvp soya chunks machine is controlled by a PLC touch screen, and all temperatures and speeds can be set and adjusted from the screen.
3. This Tvp soya chunks machine uses a square barrel with several built-in U-shaped water channels to cool the machine
Our Service:
1.Welcome to visit my factory
2.We respond to your inquiries online 24 hours a day
3.We offer the best price
4.We have extensive experience in providing formulas and technologies
5.The warranty period of the entire machine is one year
Packing & Shipping:
CE certificate
