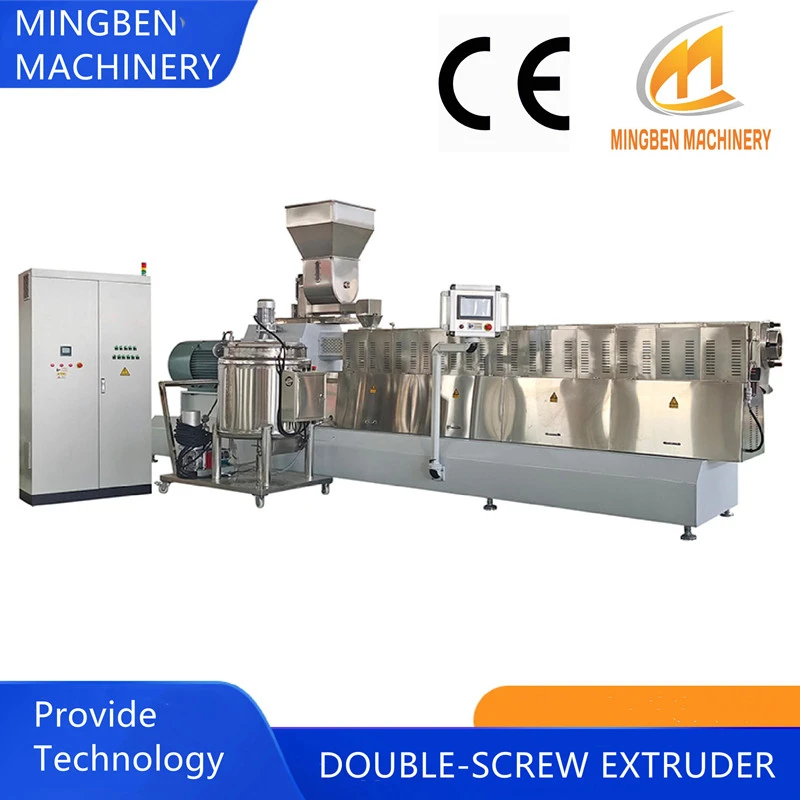

TSP Chunks Extruder

M 35 TSP chunks extruder: 10-30kg/h

M 65 TSP chunks extruder: 100-200kg/h

M 75 TSP chunks extruder: 200-400kg/h

Manufacturer: SHANDONG MINGBEN MACHINERY TECHNOLOGY CO., LTD

Place of origin: Jinan, China.

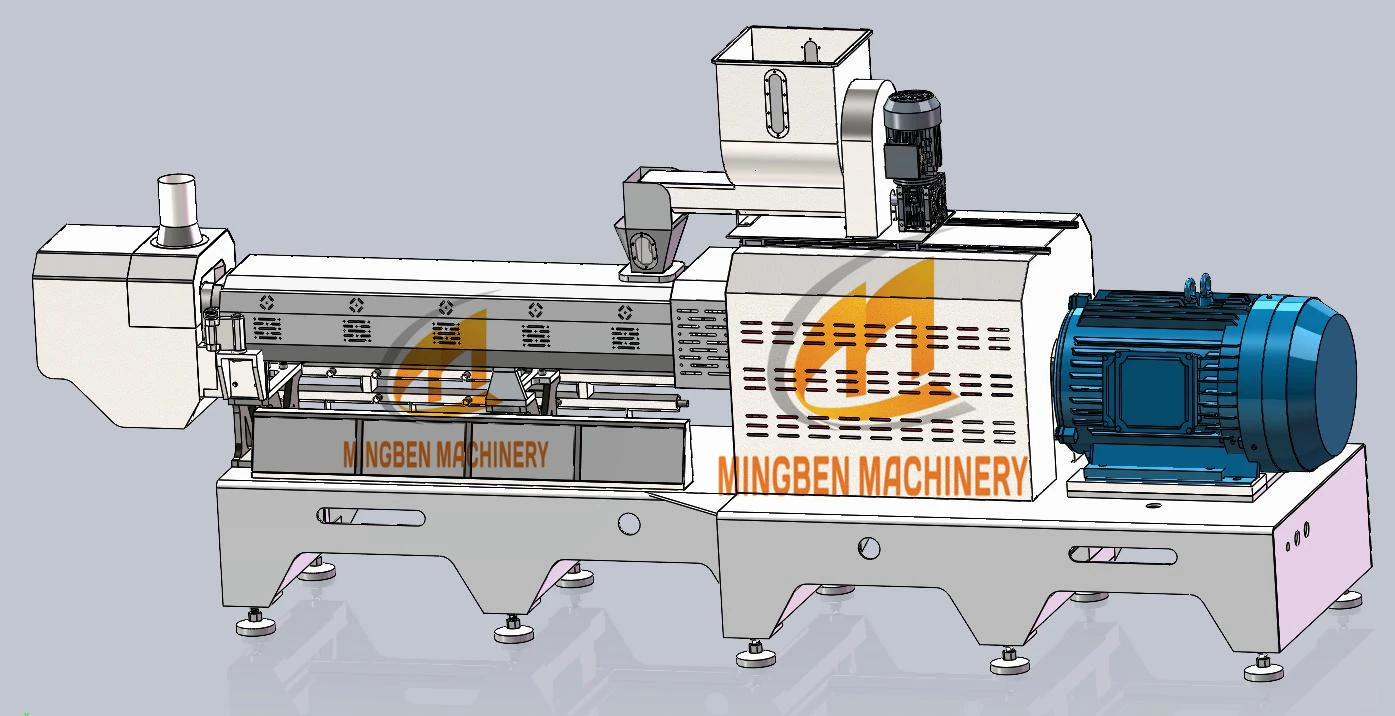

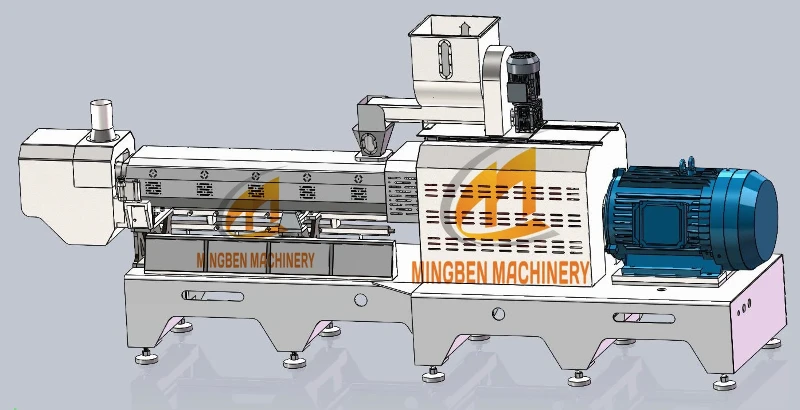

Feeding system-Extrusion system-Rotary cutting device-Drive system-Heating system-Coolant system

-Control system-Operating system

Main material: The feeder and shell are made of 304 stainless steel material; The frame and barrel are made of carbon steel material; The screw and barrel liner are made of high-strength alloy steel material.

Equipment function: To puff and ripen powder and fine grain raw materials for granulation, slicing, and milling; The main product categories include: fortified rice, breakfast cereals, noodle products, casual puffed snacks, pre gelatinized modified starch, puffed pet feed, TVP/ TSP etc.

Screw specification: modular twin screw; Composed of 2 core shafts and various specifications of accessories such as screw sleeves, shear blocks, and resistance sleeves.

Screw material: alloy high-speed steel, with a hardness of approximately 62-64HRC

Barrel specification: square barrel.

Temperature control method: PLC temperature control module automatically controls temperature; PID control logic

Heating method: electric heating.

Cooling method: water cooling

Feeding method: screw pushing; Volumetric feeding

Control method: External touch screen control cabinet





TSP chunks extruder Model	M75	M85
Voltage/ frequency	380V/220V/50HZ/60HZ	380V/220V/50HZ/60HZ
Oil pump power	0.55 kW	0.55 kW
Feed power	1.5 kW	1.5 kW
Feed speed	0-35rpm	0-35rpm
Feed diversion	incongruous	incongruous
Rotary cutting power	2.2 kW	2.2 kW
Rotary cutting speed	0`3000rpm	0`3000rpm
Rotary cutting steering	inverse time	inverse time
Rotary cutting knife	2~4	2~4
Main motor power (optional)	55Kw	75Kw
	75kW	90kW
	90Kw	110kW
Screw speed	0~500rpm	0~500rpm
Screw rotation	Concurrent syndromic	Concurrent syndromic
Host screw material (optional)	38CrMoAL	38CrMoAL
	Cr12MoV	Cr12MoV
	6542	6542
Host screw diameter	75mm	85mm





















Shandong Mingben Machinery Technology Co., Ltd. Is a manufacturer located in Jinan, Shandong Province, China. Our company's technical engineers have over 20 years of industry experience.

Our extrusion production line can process different raw materials to produce different properties of snack food and pet food. The products mainly include casual puffed foods, breakfast cereal substitutes, Soybean textured vegetable protein chunks,High moisture meat analogues, composite artificial rice, pet food, pre gelatinized modified starch, etc.
