Soya Chunks Making Machines
M 35 Soya Chunks Making Machines: 10-30kg/h
M 65 Soya Chunks Making Machines: 100-200kg/h
M 75 Soya Chunks Making Machines: 300-400kg/h
Features
M 35 Soya Chunks Making Machines: 10-30kg/h
M 65 Soya Chunks Making Machines: 100-200kg/h
M 75 Soya Chunks Making Machines: 300-400kg/h
Soya Chunks Making Machines
Choose the plan that suits you best.
Fully automatic Soya Chunks Making Machines
Powerful Brand Influence
20 Years of Deep Technology Accumulation
High quality pre-sales and after-sales servic

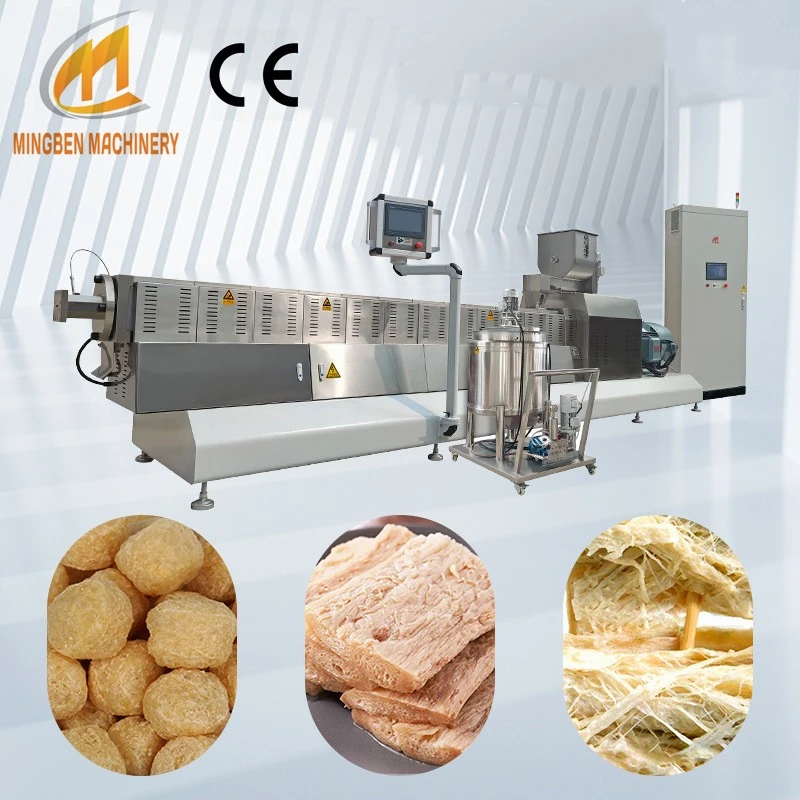

Soya Chunks Making Machines: Double screw extruder
Fully automatic electric upgraded twin screw extruder. The whole machine includes: double screw extruder, screw feeder and electrical control cabinet
PLC touch screen control system
Control mode: external touch screen control cabinet
PLC brand: Delta
Touch screen brand: Delta
Inverter brand: Delta
Low voltage electrical appliance brand: Schneider
automatic Feeding system
Feeding mode: screw push; Volume feeding
Feeding screw speed: 0-82rpm frequency control
Extrusion system
Screw specifications: building blocks combined type twin screw; It is composed of 2 mandrel and a variety of accessories such as screw sleeve, shear block and resistance sleeve.
Temperature control system
PLC temperature control module automatic temperature control; PID control logic
Heating method: electric heating
Drive system
Driving motor brand: Siemens Bade
Distribution box speed ratio: 3:1 or custom
Output speed: 0-480 RPM or custom frequency control
Main material
Main material: the feeder and shell are made of 304 stainless steel; The frame and barrel are made of carbon steel. The screw and barrel bushing are made of high strength alloy steel
|
Production line model |
M 35 Soya Chunks Making Machines |
M 65 Soya Chunks Making Machines |
M 75 Soya Chunks Making Machines |
|
Rated power |
50kw |
150kw |
220kw |
|
Actual power consumption |
25kw |
75kw |
110kw |
|
Covered area |
20㎡ |
100㎡ |
120㎡ |
|
Design capacity |
15-30kg/h |
100-150kg/h |
200-300kg/h |
who choose us?

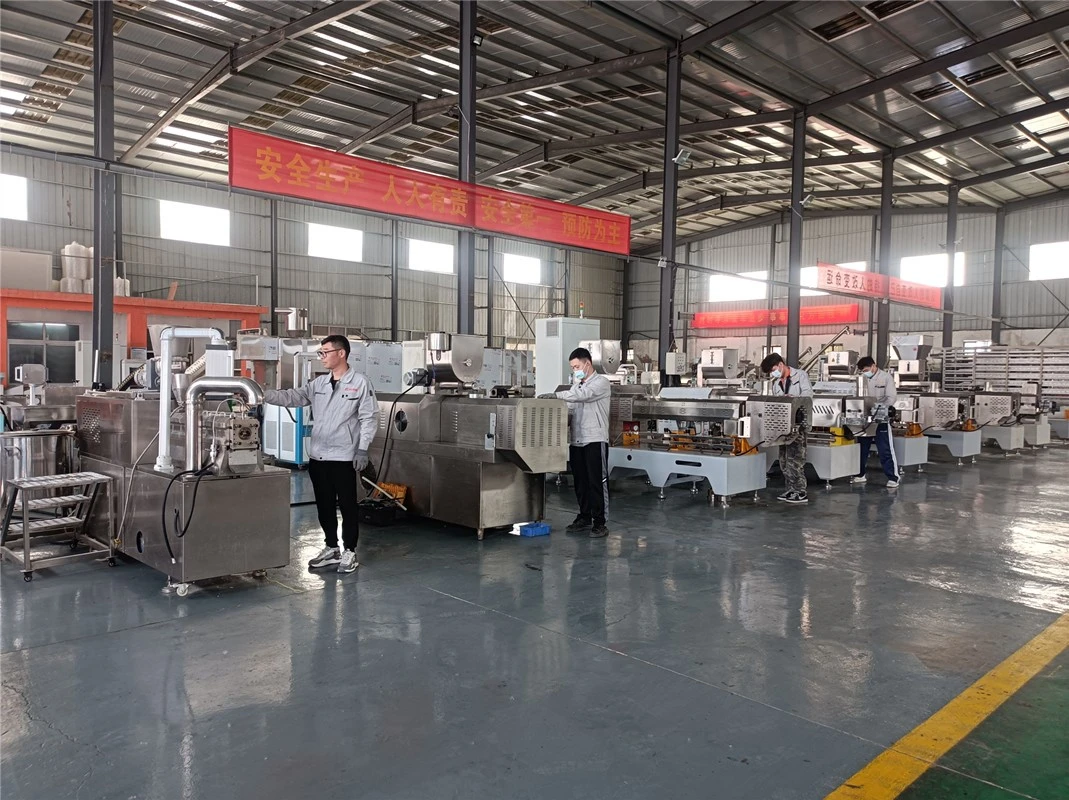

Shandong Mingben Machinery Technology Co., Ltd. Is a manufacturer located in Jinan, Shandong Province, China. Our company's technical engineers have over 20 years of industry experience.
Over the years, we have exported to over 100 countries and regions worldwide. We export fish feed production lines to Norway, Africa, and many other countries. We export puffed food production lines to Indonesia, South Korea, Malaysia, Vietnam, Australia, and many other countries. We also export large modified starch production lines to Russia, Saudi Arabia, and many other countries and regions. We also export vegetarian meat production lines to the United States, Armenia, Vietnam, Singapore, Malaysia. Welcome to cooperate.
one-stop solution
professional team
high quality
