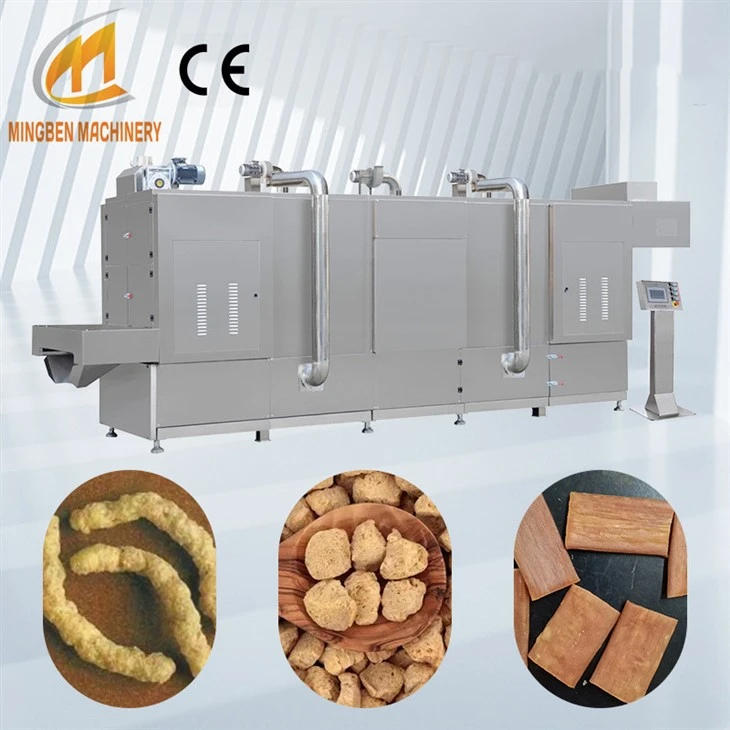

Low Moisture Extrusion

M 65 Low moisture extrusion: 100-200KG/H
M 75 Low moisture extrusion: 300-500KG/H
M 85 Low moisture extrusion: 500-800KG/H

Send Inquiry

Features

Products Description

Low moisture extrusion uses a twin-screw extruder to process soy protein meat products, which are made from raw materials such as soybean meal and isolated protein. Under the high temperature and high pressure of the twin-screw extruder, vegetarian food with fibrous meat fibers is produced. This product is dry and should be soaked in water during use. It tastes like meat. Highly favored by vegetarians. The entire production process is fully automated, hygienic and safe.

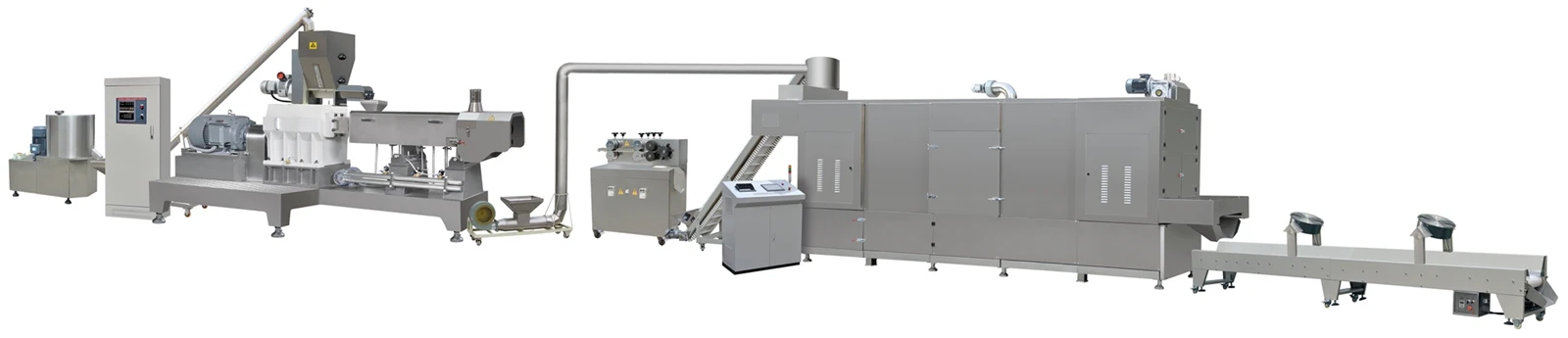

textured vegetable protein machines

Products Process

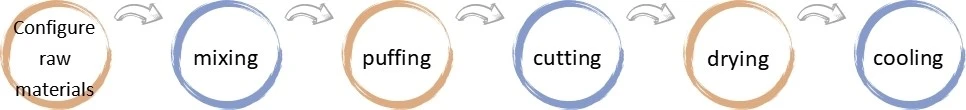

textured vegetable protein process

Products Parameter

Production line model	M 35 Low moisture extrusion	M 65 Low moisture extrusion	M 75 Low moisture extrusion
Rated power	50kw	150kw	220kw
Actual power consumption	25kw	75kw	110kw
Covered area	20㎡	100㎡	120㎡
Design capacity	15-30kg/h	100-150kg/h	200-300kg/h
Water consumption	≤10kg/h	≤50kg/h	≤100kg/h
Number of employees	1-2people	2-3people	2-3people

Twin screw extruder parameters

M75 Double screw extruder

Output: 200-300kg/h

PLC Touch control

product-529-263

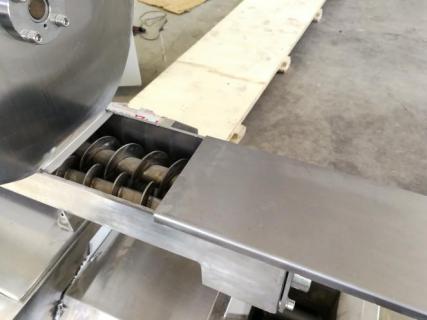

Feeder: The stainless steel retractable double-shaft feeder is used to deliver raw materials to the extrusion at a constant speed.

product-427-320

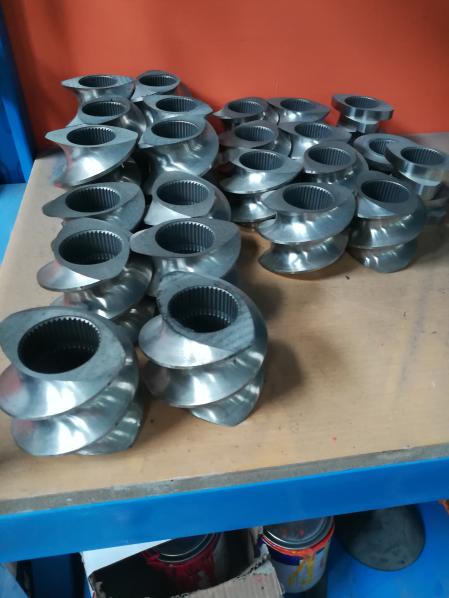

Modular combined screw

Screw Diameter: 75mm

product-449-598

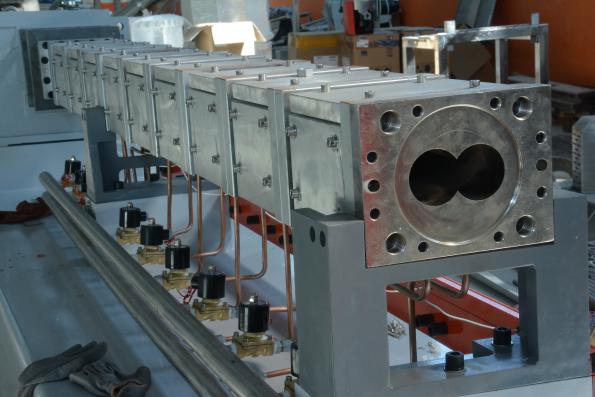

Square barrel with cooling system

10 temperature zones with cooling system.

product-595-397

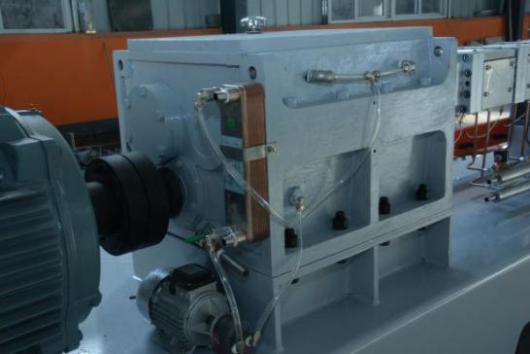

Gearbox: high torque distribution box is adopted, and the maximum allowable torque can reach more than 3 times of the standard output torque of the motor.

product-530-354

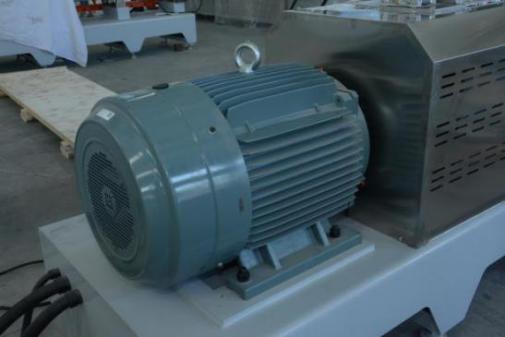

Main Motor Power: 90kw

Main motor: Siemens beide

Electrical parts: schneider

Frequency converter: Delta

product-505-337

Products Sample

textured vegetable protein

Products Packages

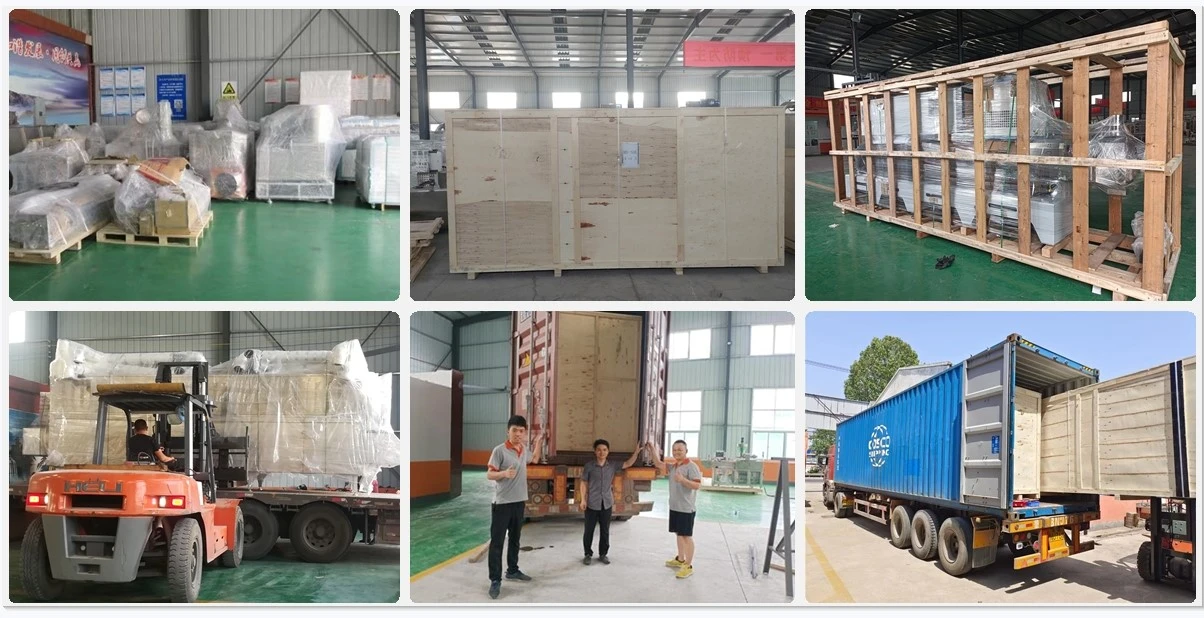

Low Moisture Extrusion extruder will be packed in wooden cases or plastic film.

packingshipping

Our CE certificate

product-1209-618

We are Extruder experts

The company is recognized as a world leader in extruder and offers products and services of exceptional quality.

We export fish feed production lines to Norway, Africa, and many other countries. We export puffed food production lines to Indonesia, South Korea, Malaysia, Vietnam, Australia, and many other countries. We also export large modified starch production lines to Russia, Saudi Arabia, and many other countries and regions. We also export vegetarian meat production lines to the United States, Armenia, Vietnam, Singapore, Malaysia, and many other countries and regions.
