Products
Dog Food Making Machinery
M65 dog food making machinery: 100-150kg/h
M85 dog food making machinery: 400-500kg/h
M100 dog food making machinery: 700-1000kg/h
M140 dog food making machinery: 1200-2000kg/h
Features
Products Description
The puffed dog food making machinery is an industrialized automatic production line that uses various grains or animal products as the main raw materials to produce puffed feed. This dog food making machinery adopts a twin-screw extrusion puffing production process, which utilizes the high temperature, high pressure, and shear force during the extrusion process to cause the starch and animal and plant proteins in the raw materials to undergo ripening and denaturation.
M65 dog food making machinery: 100-150kg/h
M85 dog food making machinery: 400-500kg/h
M100 dog food making machinery: 700-1000kg/h
M140 dog food making machinery: 1200-2000kg/h
Products Sample Images
Products process
Products Parameters
|
Model |
M85 dog food making machinery |
M100 dog food making machinery |
M140 dog food making machinery |
|
Rated power |
200kw |
300kw |
400kw |
|
Actual power consumption |
100kw |
150kw |
200kw |
|
Floor area |
150m2 |
180m2 |
220m2 |
|
Design capacity |
400-500kg/h |
700-1000kg/h |
1200-2000kg/h |
|
Number of employees |
4-5 person |
4-5 person |
4-5 person |
|
Applicable raw materials |
Cereal powder and animal products |
|
Product category |
puff pet feed; Cat food; Dog food; Aquatic feed; Suckling pig feed, etc |
|
control mode |
The control cabinet regulates production parameters, which can be extended and supports remote centralized control |
|
after-sale service |
Provide on-site guidance on installation and debugging of equipment, and provide basic production technical guidance; One year warranty for the entire line |
Detailed Images
|
1. MIXER |
|
|
|
Power: 7.5kw Dimension: 1410*760*1350mm Output: 50kg/2 min
|
|
2. Screw Conveyor |
|
|
|
Power: 1.5kw Dimension: 3700*700*3550mm
|
|
3. M85-II Double screw extruder |
|
|
|
Total Power: 103kw Main Motor Power: 75kw Heating power：25kw Screw Material: 38CrMoAl Dimension: 4200*1000*2000 mm Screw Diameter: 85mm Capacity: 400-600kg/h
|
|
4. Vibrator |
|
|
|
|
|

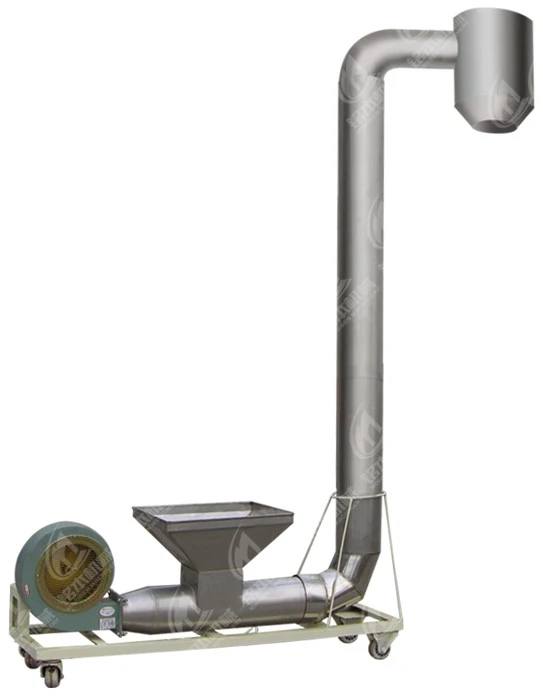

5. Air conveyor |
|
|
|
1.1kw |
|

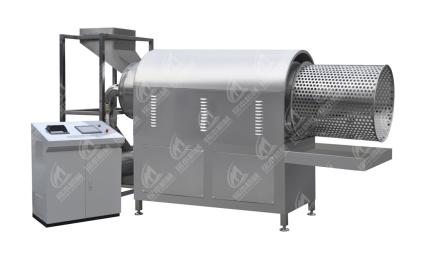

6. Roller dryer |
|
|
|
Power: 16.3kw Dimension: 2200x805x4040mm
|
|
7. Hoister |
|
|
|
Dimension: 2000x741x3314mm Power: 0.37kw
|
|
8. 7m5Layer Electric Oven |
|
|
|
Total Power: 75.5kw Heating Power: 72kw Circulating fan and dehumidifying fan Stainless steel mesh belt Dimension: 7530*1320*2570mm
|
|

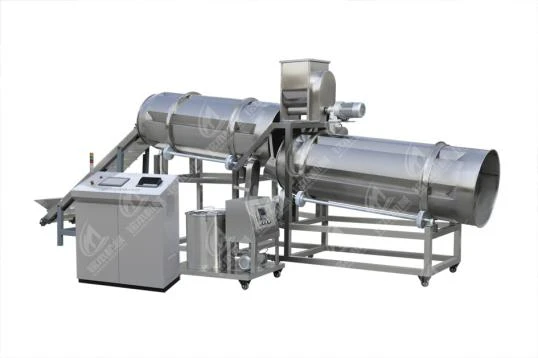

9. Flavoring Line |
|
|
|
Include oil sprayer, hoister, double roller, Seasoning machine Dimension: 5400*790*2045mm Roller diameter: 600mm
|
|
10. Cooling Conveyor |
|
|
|
Dimension: 3000*500*800mm
|
Our service
About Us
Our company specializes in producing twin screw extruders and grain food and feed production lines, vegetarian protein meat and high moisture meat analogues production lines, breakfast cereals and corn flakes production lines, nutritional rice and instant rice production lines, modified starch production lines, etc
