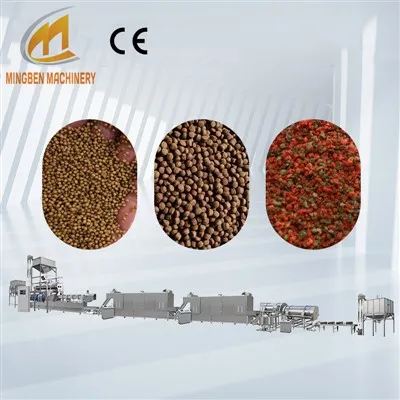

Floating Fish Feed Extruder Machine

The floating fish feed extruder machine is to produce many kinds of fish feed pellet. The floating fish feed extruder machine is mainly composed of six parts: extrusion system, electric control system, temperature control system, transmission system, feeding system, and forming system. The fish feed production line include mixer, double screw extruder, oven, flavoring line and cooling machine. It can also be equipped with a steam conditioning system for wet expansion production as needed. The mold that on floating fish feed extruder machine can be changed according to different fish feed shapes, we supply different size mold free of charge. The floating fish feed extruder machine main material is food grade stainless steel. We provide fish feed formula, Support customized design and manufacturing.









Model	M 85 Floating fish feed extruder machine	M 100 Floating fish feed extruder machine	M 140 Floating fish feed extruder machine	Customized Floating fish feed extruder machine
Rated power	200kw	300kw	400kw	Provide customized design and production services according to production capacity requirements and product requirements
Actual power	100kw	150kw	200kw
Floor area	150m2	180m2	220m2
Design capacity	400-500kg/h	700-1000kg/h	1200-2000kg/h
Workers	2-3 workers	4-5 workers	4-5 workers
Main materials	Food grade stainless steel
production process	Configure raw materials → Mixing → Extruding → Screening → Drying → Flavoring → Cooling → Product
Raw materials	Cereal powder bone meal and meat meal
Product category	Expanded pet feed; Cat food; Dog food; Aquatic feed; Suckling pig feed, etc
control mode	Control cabinet control, remote centralized control can be customized
after-sale service	Provide on-site guidance on installation and debugging of equipment, and provide basic production technical guidance; One year warranty for the entire line









1. The floating fish feed extruder machine adopts double screw extruder, different outputs.

2. The floating fish feed extruder machine adopts advanced digital control system to intelligently control various production parameters of equipment.

3. The floating fish feed extruder machine design and material selection of the production line meet the relevant requirements for food safety production.

4. The floating fish feed extruder machine is continuously and automatically produced from raw materials to finished products.

5. The floating fish feed extruder machine main power is electric, gas and steam can also be provided.

6. The floating fish feed extruder machine has a long service life and is easy to clean.





1. We are a manufacturer, Exported to many countries with rich experience.

2. Perfect workshop. Always committed to research and development.

3. Ensure the products meet the quality standards.

4. Ensure the goods will be delivered on time.

5. Customized specifications are welcome.





Hot Tags: floating fish feed extruder machine, China floating fish feed extruder machine manufacturers, suppliers, factory, , Fish Feed Extruder Machine
