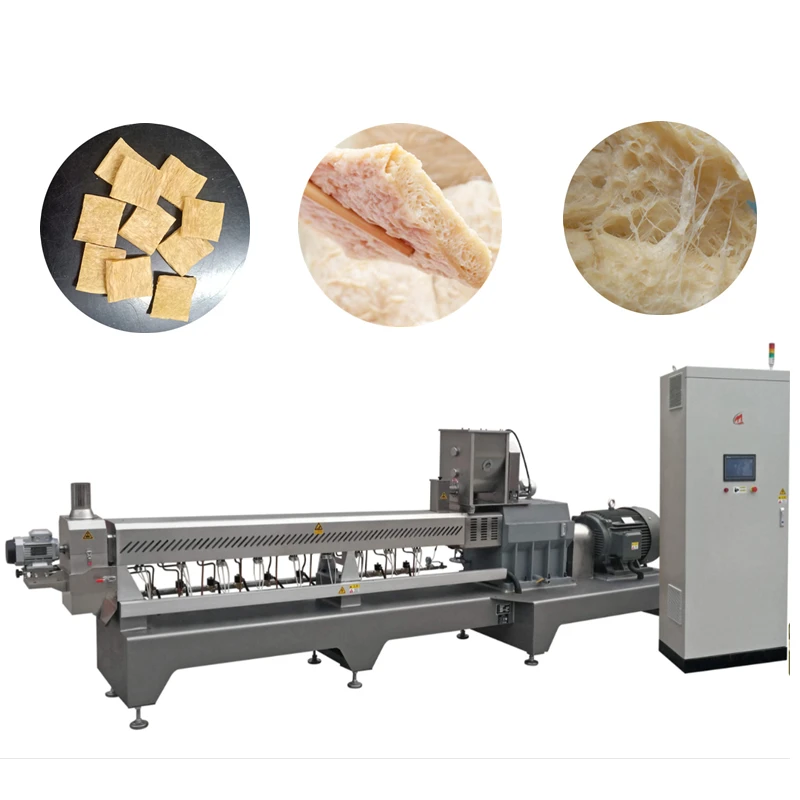

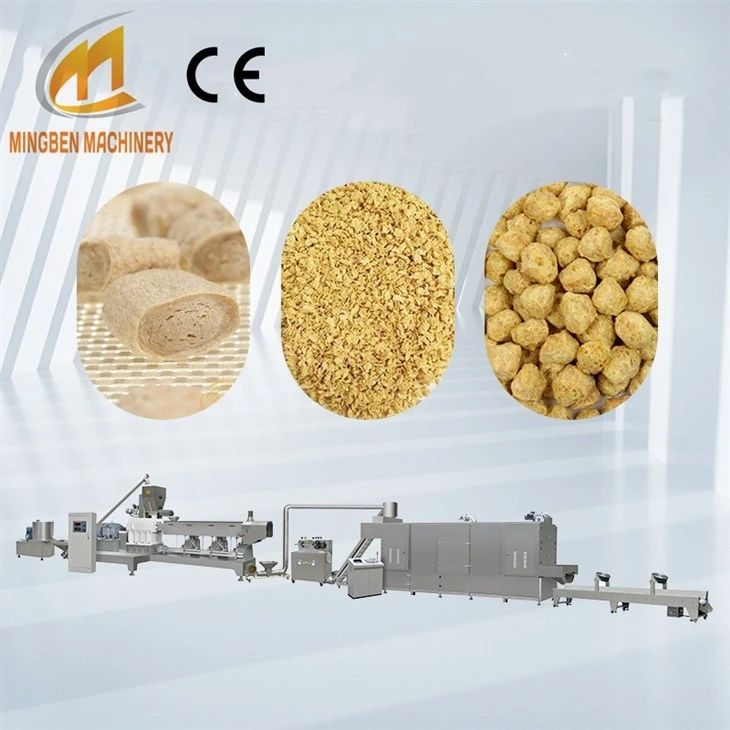

Soybean Chunks Making Machine

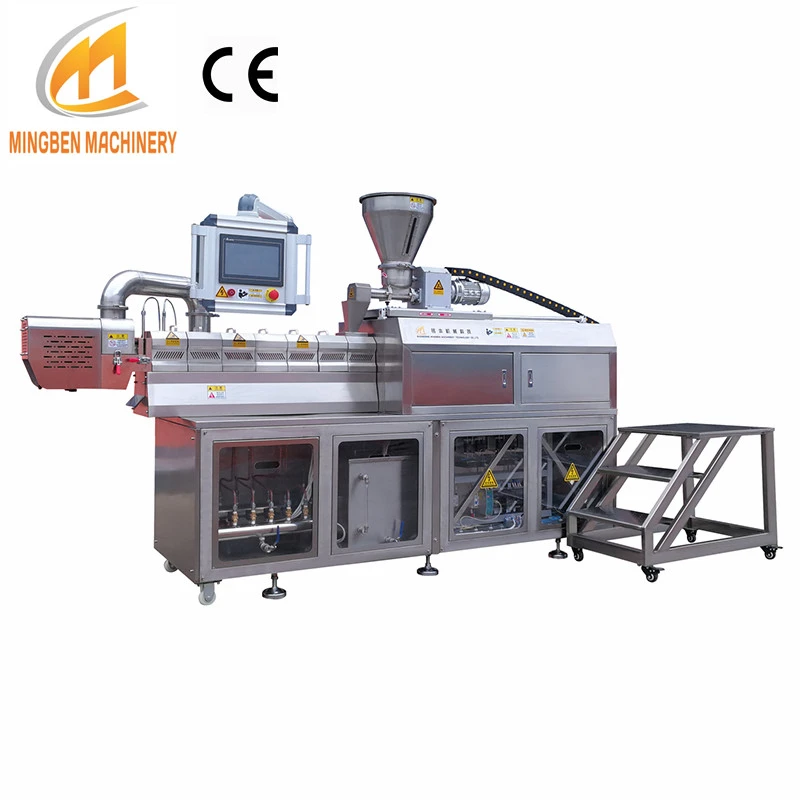

M 35 Soybean chunks making machine: 10-30kg/h
M 65 Soybean chunks making machine: 100-200kg/h
M 75 Soybean chunks making machine: 300-500kg/h
Features
304 stainless steel meets the international requirements of food grade.
Capacity of M 35 Soybean chunks making machine: 10-30kg/h.
Main motor power: 11kw/ 30kw
The square barrel comes with a U-shaped circulating water circuit. Building block combination screws
This machine has a small production capacity and is suitable for use in laboratories, universities, and research institutes.
Temperature control mode: PLC temperature control module automatic temperature control; PID control logic
Heating method: electric heating.

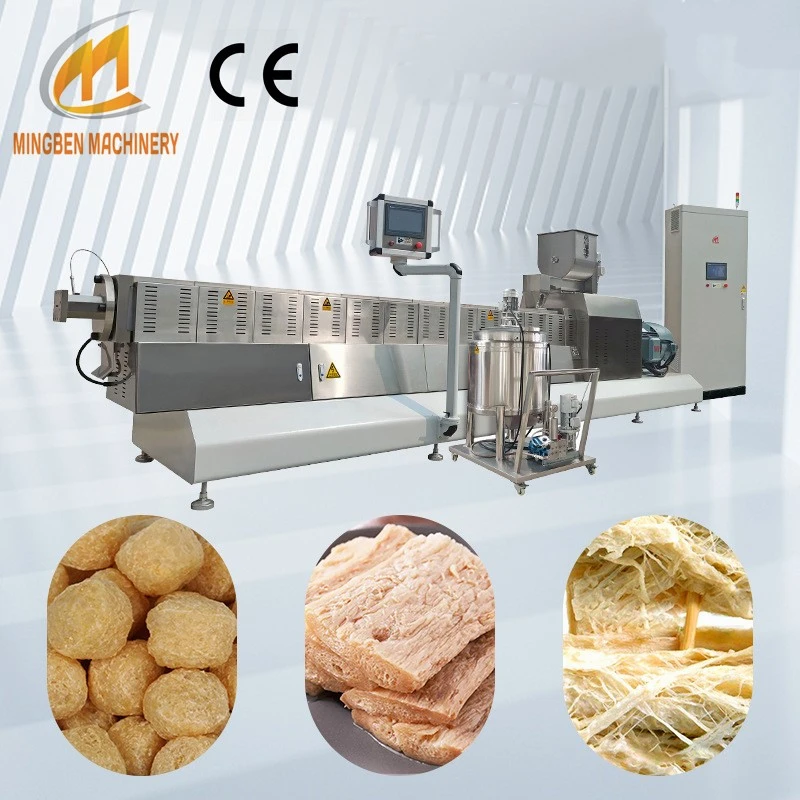

M 65 Soybean chunks making machine
Machine specifications
The entire machine includes: twin screw extruder, screw feeder, and electrical control cabinet
Dimensions (length * width * height): 4200 * 900 * 1900mm
Rated power: 78 kw
Main material: The feeder and shell are made of 304 stainless steel material; The frame and barrel are made of carbon steel material; The screw and barrel liner are made of high-strength alloy steel material.
Screw specification: modular twin screw; Composed of 2 core shafts and various specifications of accessories such as screw sleeves, shear blocks, and resistance sleeves; Screw diameter 65mm, screw aspect ratio 28:1
Screw material: alloy high-speed steel, with a hardness of approximately 62-64HRC
Barrel specification: square barrel
Temperature control mode: PLC temperature control module automatic temperature control; PID control logic
Heating method: electric heating.
Capacity: 100-200kg/h
The whole machine includes: double screw extruder, screw feeder and electrical control cabinet
Dimension (length * width * height) : 4500*1000*2000mm
Rated power: 88 kw
Main material: the feeder and shell are made of 304 stainless steel; The frame and barrel are made of carbon steel. The screw and barrel bushing are made of high strength alloy steel.
Screw specifications: building blocks combined type twin screw; It is composed of 2 mandrel and a variety of accessories such as screw sleeve, shear block and resistance sleeve. Screw length 2170mm diameter 75mm screw length-diameter ratio 28:1
Screw material: alloy high speed steel, hardness about 62-64HRC
Cylinder specification: square cylinder.
Temperature control mode: PLC temperature control module automatic temperature control; PID control logic
Heating method: electric heating.
Capacity: 300-500kg/h
Products Samples
product key technologies

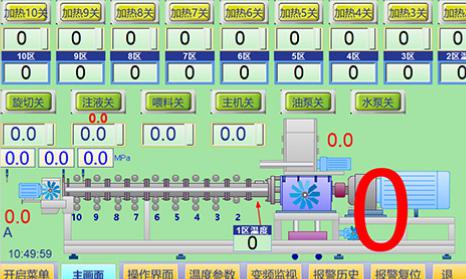

PLC touch screen control system
Touch screen setting parameters, easy to operate, and easy to observe data

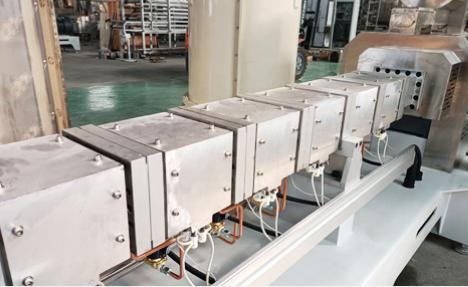

square barrel
The square barrel is equipped with a U-shaped circulating water circuit inside, ensuring accurate cooling
product key technologies

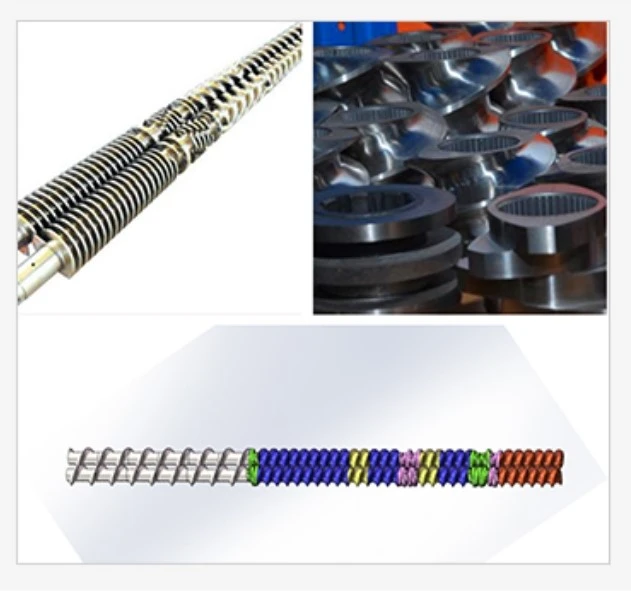

Building block combination screws
Screw specifications: building blocks combined type twin screw; It is composed of 2 mandrel and a variety of accessories such as screw sleeve, shear block and resistance sleeve.
Screw material: alloy high speed steel, hardness about 62-64HRC.

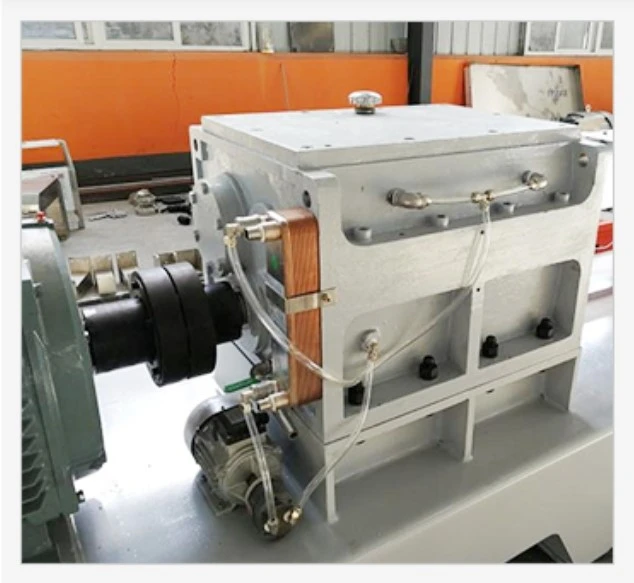

: high torque distribution Gearbox
Gearbox: high torque distribution box is adopted, and the maximum allowable torque can reach more than 3 times of the standard output torque of the motor.
Our Certificate
CE
ISO
CE
ISO

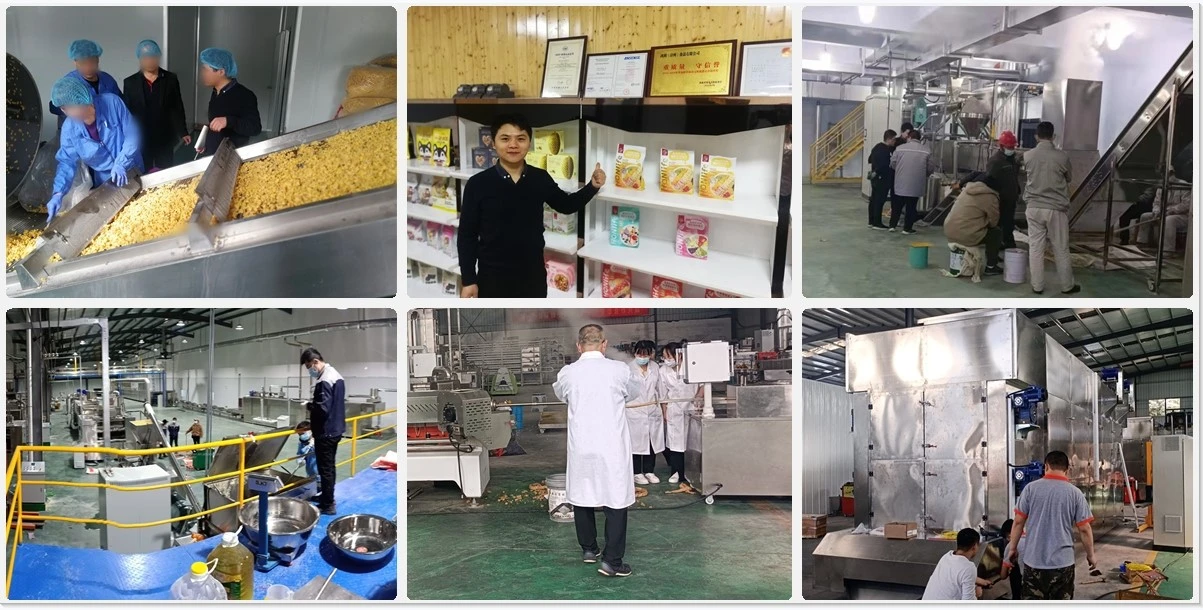

Our Case
