Nutritional Powder Processing Line
We offer Nutritional powder processing line, the capacity from 100kg/h to 1000kg/h. Provide customized design and production services according to production capacity requirements and product requirements.
Features
The nutritional powder processing line can use a variety of natural cereals as single or compound ingredients as the main raw materials, and adopts twin-screw extrusion, puffing, and aging processing techniques to produce various nutritious cereal meal replacement powder porridge, such as infant rice flour, rice porridge, polenta, and grains. Coarse grain flour, red bean barley flour, yam flour, etc.; it can also produce puffed corn flour, puffed rice flour and other food and feed raw ingredients. After extrusion, puffing and ripening, this type of product has a strong aroma of grains, easy absorption of nutrients and reduced bulk density. It has good effect as meal replacement powder and porridge, and is well mixed and not easy to clump.
Feature of nutritional powder processing line:
●The whole production line has the advantage with high automatic degree, strong stability, easy operation and high capacity.
●The nutritional powder processing line can suitable for wide range raw material which can produces various cereal instant powder and grains powder.
●This production line can finish all the process automatically from mixing to the end which can reduce manual work and save the cost.
●This production line effectively improves the disadvantages of the original tradition, and is a new and efficient nutritional powder processing line.

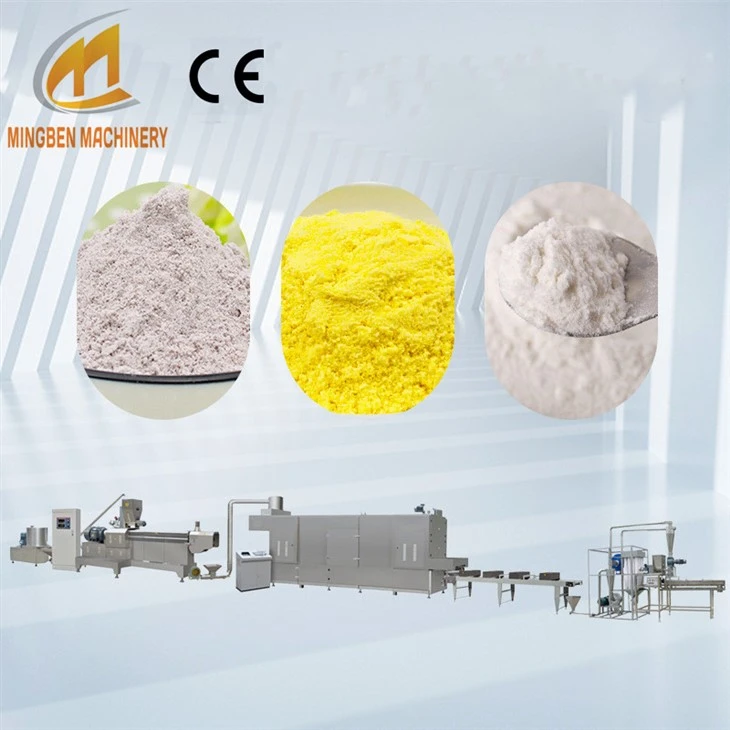

Product Image
Specification of nutritional powder processing line:
|
Production line model |
MC75 nutritional powder processing line |
MC85 nutritional powder processing line |
MC100 nutritional powder processing line |
Customized nutritional powder processing line |
|
Rated power |
70kw |
130kw |
180kw |
Provide customized design and production services according to production capacity requirements and product requirements |
|
Actual power consumption |
35kw |
65kw |
90kw |
|
|
Covered area |
80㎡ |
120㎡ |
150㎡ |
|
|
Design capacity |
200-300kg/h |
400-500kg/h |
600-800kg/h |
|
|
Water consumption |
200-300kg/h |
400-500kg/h |
600-800kg/h |
|
|
Steam consumption |
0 |
0 |
≤100kg/h |
|
|
Gas consumption |
0 |
0 |
0 |
|
|
Number of employees |
2-3people |
2-3people |
2-3people |
|
|
Main material |
Food grade stainless steel/carbon steel. |
|||
|
Applicable raw materials |
Rice, corn, wheat, tartary buckwheat, oats, quinoa, some beans, etc.. |
|||
|
Product Category |
Prepared cereal meal replacement powder, rice cereal and rice porridge; puffed corn flour, puffed rice flour |
|||
|
Control method |
The control cabinet regulates production parameters, can be expanded and supports remote centralized control. |
|||
|
After-sales service |
On-site guidance to install and debug equipment, and provide basic production technical guidance; one-year warranty for the entire line. |
|||
Product Automation Production Process

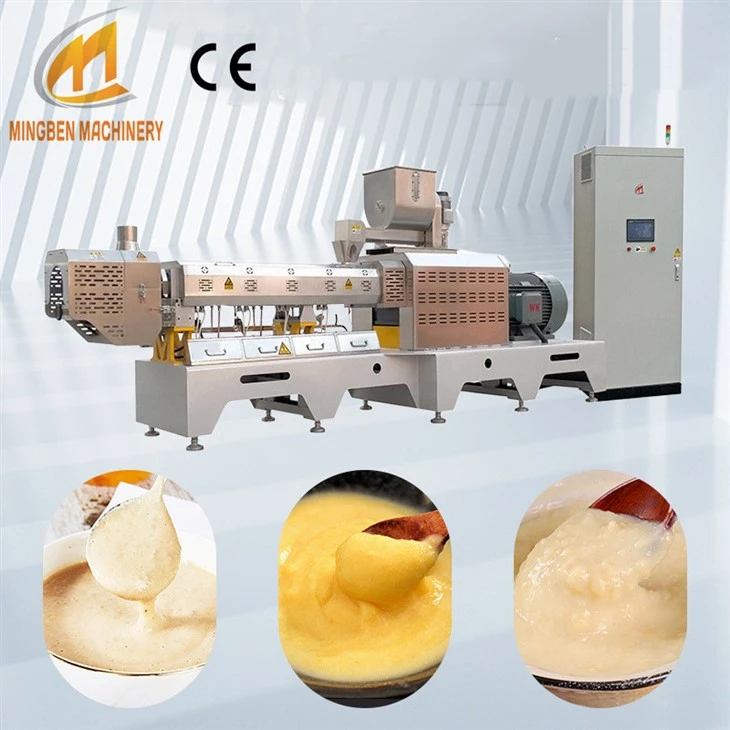

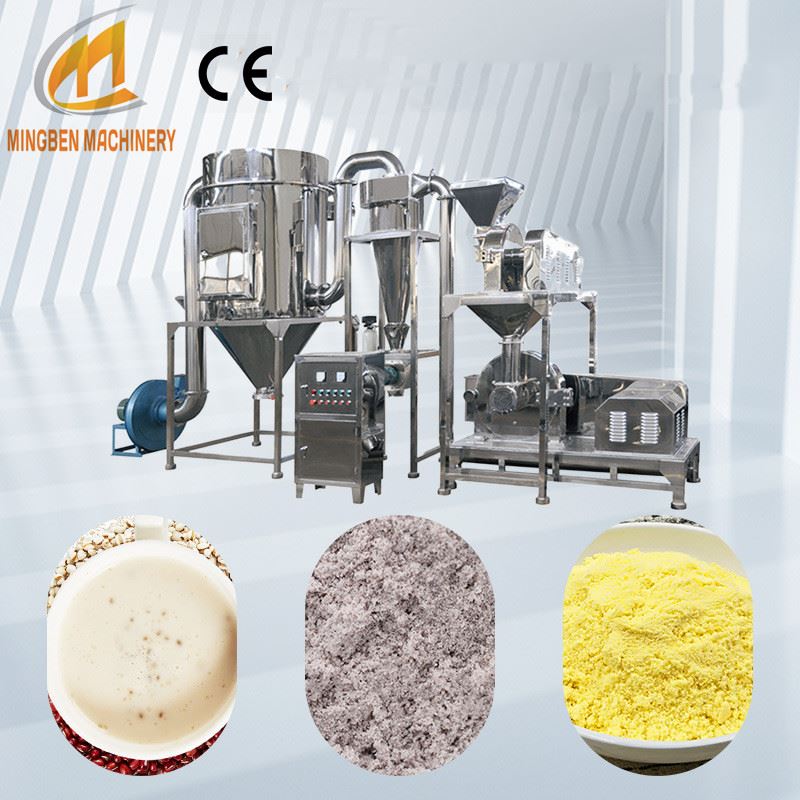

Connected to the silo above→ 1. SCREW CONVEYOR → 2. DOUBLE SCREW EXTRUDER→ 3. Water Injection Machine→ 4. AIR CONVEYOR→ 5. OVEN → 6. COOLING MACHIN→7. PULVERIZE (with dust removal system)
Our Service:
We serve customers from over 90 countries around the world.
Our rich production experience can provide customers with technical and formula solutions.
We have developed an upgraded extruder that can be used to produce various types of snack foods and soy products.
We provide experimental services.
We provide on-site assembly and training
