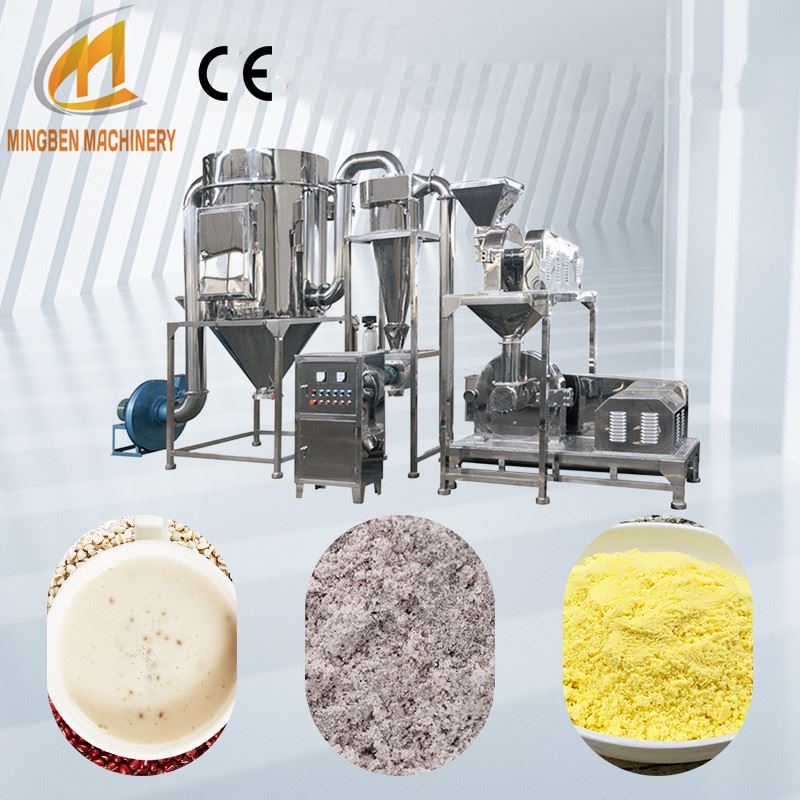

Instant Porridge Powder Machine

The Instant Porridge powder machine is divided into different models based on the diameter of the screw, with screw diameters of 65mm, 75mm, 85mm, 100mm, etc. The production capacity also varies, which are 100 kilograms per hour, 300 kilograms per hour, 500 kilograms per hour, and 1 ton per hour.

Send Inquiry

Features

Instant Porridge powder machine uses the puffing process to produce Instant Porridge powder. The Congee powder is cooked and can be directly brewed with water, which is convenient and fast. It has the strong flavor of grains and smooth taste. The Instant Porridge powder machine is divided into different models based on the diameter of the screw, with screw diameters of 65mm, 75mm, 85mm, 100mm, etc. The production capacity also varies, which are 100 kilograms per hour, 300 kilograms per hour, 500 kilograms per hour, and 1 ton per hour. Customers can choose and purchase the Instant Porridge Powder machine based on their production volume requirements, which uses industrial electricity, The motor is an internationally renowned brand Siemens and Siemens Beide, the frequency converter is Delta, and the electrical components are Schneider.

nutritional powder machines001

Product Image

nutritional powder001

Specification of Instant Porridge powder machine:

Production line model	MC75 Instant Porridge powder machine	MC85 Instant Porridge powder machine	MC100 Instant Porridge powder machine	Customized Instant Porridge powder machine
Rated power	70kw	130kw	180kw	Provide customized design and production services according to production capacity requirements and product requirements
Actual power consumption	35kw	65kw	90kw
Covered area	80㎡	120㎡	150㎡
Design capacity	200-300kg/h	400-500kg/h	600-800kg/h
Water consumption	200-300kg/h	400-500kg/h	600-800kg/h
Steam consumption	0	0	≤100kg/h
Gas consumption	0	0	0
Number of employees	2-3people	2-3people	2-3people
Main material	Food grade stainless steel/carbon steel.

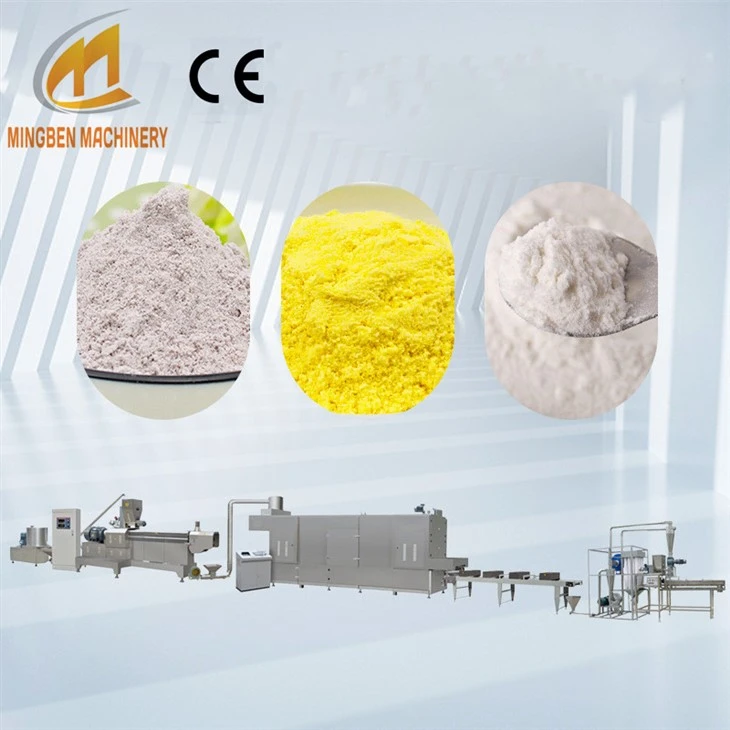

Production Process	Ingredients→mixing→extrusion and puffing→baking→spray seasoning→finished product
Applicable raw materials	Rice, corn, wheat, tartary buckwheat, oats, quinoa, some beans, etc..
Product Category	Prepared cereal meal replacement powder, rice cereal and rice porridge; puffed corn flour, puffed rice flour
Control method	The control cabinet regulates production parameters, can be expanded and supports remote centralized control.
After-sales service	On-site guidance to install and debug equipment, and provide basic production technical guidance; one-year warranty for the entire line.

Product Advantages

1. Independent PLC touch screen control system, precise display of machine parameters.

product-760-304

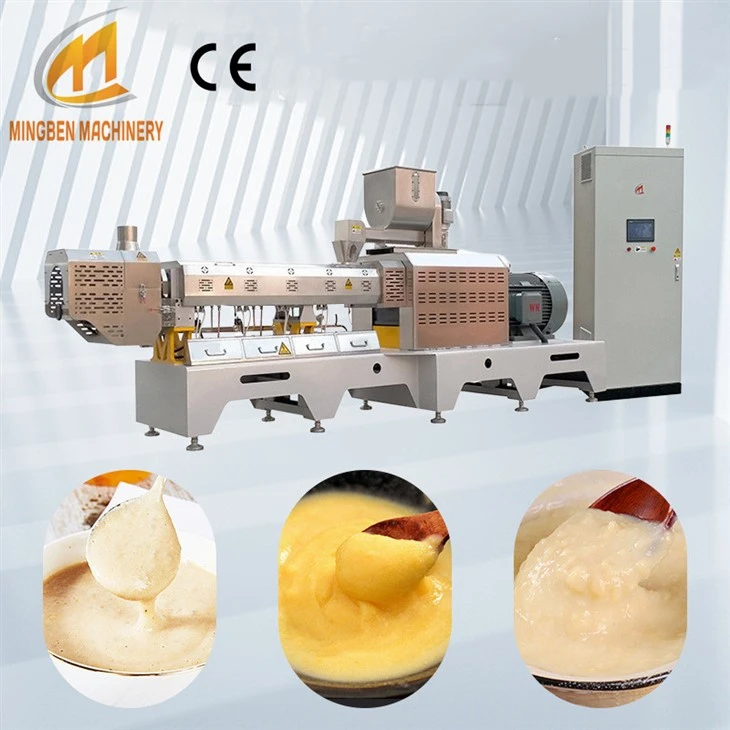

2. The basic working mode is to use twin screws to rotate in the same direction. The screws are made of 6542 high-speed steel (with a hardness of up to 70HRC) processed by special processes, and are equipped with modular screw structures such as variable pitch screws, shear blocks, and resistance rings.

product-818-307

3. Instant Porridge powder machine barrel: Made of 45 # steel material with embedded A101 alloy liner, its high strength gives it excellent service life. Even if wear occurs after long-term use, only the liner can be replaced, greatly reducing the cost of use;
