Corn Flakes Processing Machine
We supply corn flakes processing machine, from the material to the finished product, it is automatic. Corn Flakes Processing Machine is full automatic.1. MIXER → 2. SCREW CONVEYOR → 3. DOUBLE SCREW EXTRUDER → 4. VIBRATING CONVEYOR → 5. AIR CONVEYOR→ 6. ROLLER DRYER → 7. AIR CONVEYOR → 8. VIBRATING CONVEYOR → 9. TABLET MACHINE → 10. AIR CONVEYOR → 11. OVEN → 12. HOIST → 13. VIBRATING CONVEYOR → 14. HIGH TEMPERATURE HOT AIR OVEN → 15. COOLING MACHINE→ 16. HOIST →17. SUGAR COATING ROLLER → 18. SUGAR MELTING MACHINE → 19. SUGAR SPRAYER → 20. DRYER WITH CONVEYOR AND COOLING
Features
Products Description
We supply corn flakes processing machine, from the material to the finished product, it is automatic.

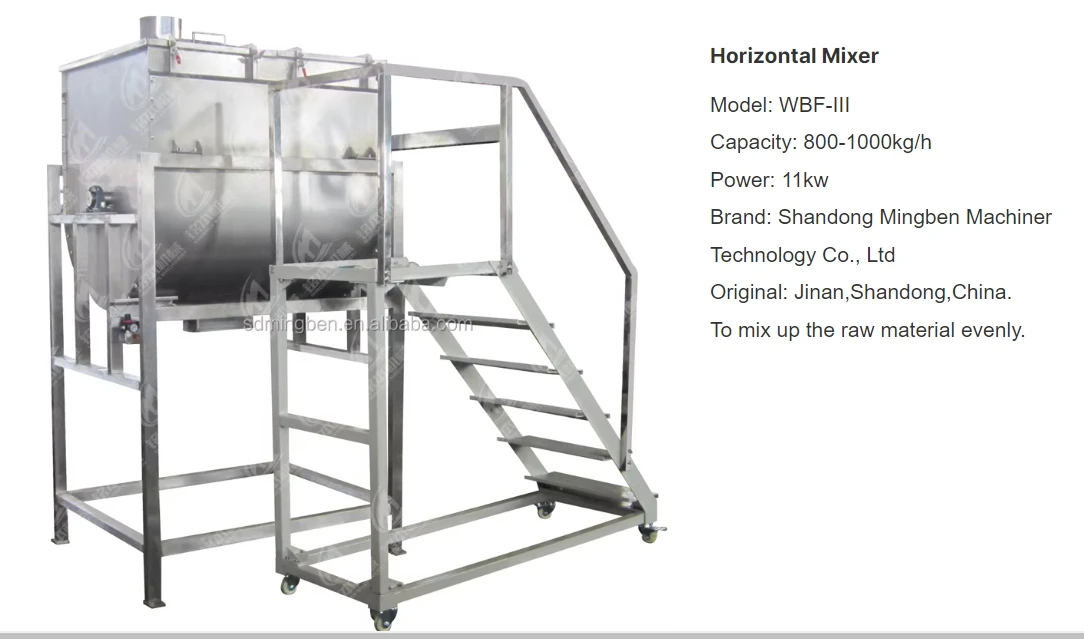

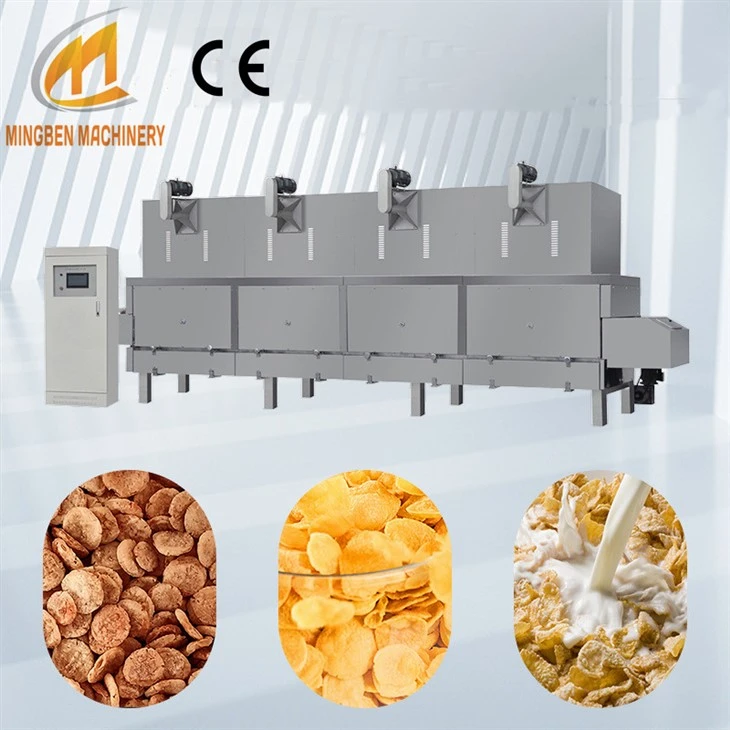

Corn Flakes Processing Machine is full automatic, it is used to produce breakfast corn flakes and corn cereals from corn flour. This Corn Flakes Processing Machine produced bland corn flakes, which were then coated with sugar and other artificial flavorings to make them tasty.The flour mixer Mix and stir the raw materials such as the corn flour and so on. The screw conveyor Convey the mixed raw materials into the extruder,

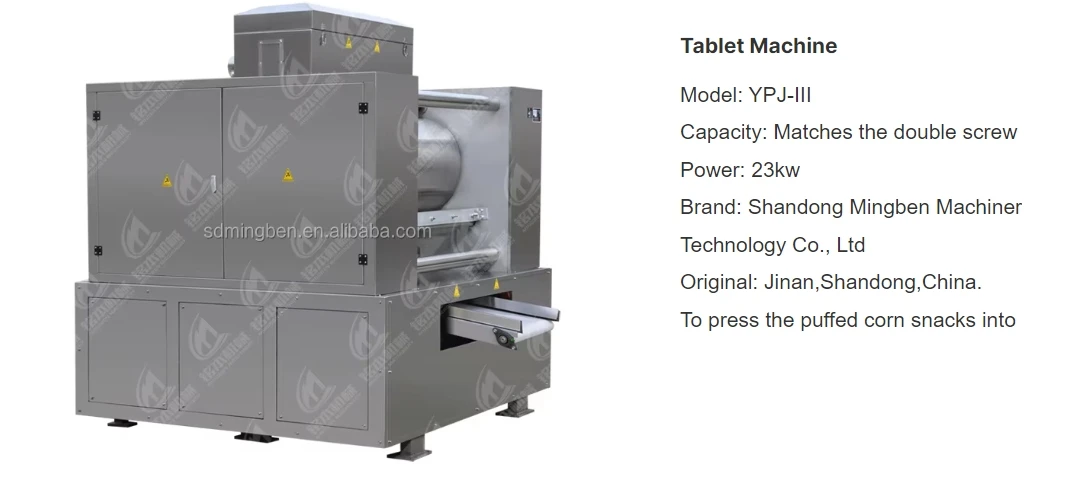

then the M85 DOUBLE SCREW EXTRUDER, The whole machine includes: double screw extruder, screw feeder and electrical control cabinet, Designed output: 400-600kg/h. The tablet machine press the puffed ball into thin slices pressure roller diameter: 600mm. Equipped with cooling water and conveying devices. Go to the oven to dry the product, then Let Corn flakes undergo secondary expansion at high temperature. Spray sugar on the corn flakes. The machine sprays a thin layer of sugar syrup onto the corn flakes, giving it a crispy texture and sweet taste, without the need for additional artificial flavorings. The machine can spray different flavors of syrups on the corn flakes, giving them an immense flavor palette.
Products Sample
Our Advantage
The production line incorporates twin-screw extrusion and ripening techniques, along with mold extrusion, delivering a diverse product range with guaranteed quality consistency.
The production line uses advanced digital controls to intelligently manage parameters, enabling central & remote control expansion.
The production line design & materials adhere to food safety standards, ensuring non-toxic, harmless production.
The production line primarily relies on electricity for power, with gas and steam serving as backup energy sources.
Machines Details
Corn Flakes Processing Machine is full automatic, it is used to produce breakfast corn flakes and corn cereals from corn flour. This Corn Flakes Processing Machine produced bland corn flakes, which were then coated with sugar and other artificial flavorings to make them tasty.The flour mixer Mix and stir the raw materials such as the corn flour and so on. The screw conveyor Convey the mixed raw materials into the extruder,
then the M85 DOUBLE SCREW EXTRUDER, The whole machine includes: double screw extruder, screw feeder and electrical control cabinet, Designed output: 400-600kg/h. The tablet machine press the puffed ball into thin slices pressure roller diameter: 600mm. Equipped with cooling water and conveying devices. Go to the oven to dry the product, then Let Corn flakes undergo secondary expansion at high temperature. Spray sugar on the corn flakes. The machine sprays a thin layer of sugar syrup onto the corn flakes, giving it a crispy texture and sweet taste, without the need for additional artificial flavorings. The machine can spray different flavors of syrups on the corn flakes, giving them an immense flavor palette.
why choose us
Packing&Shipping
corn flakes processing machine will be packed by wooden cases or packing film.
