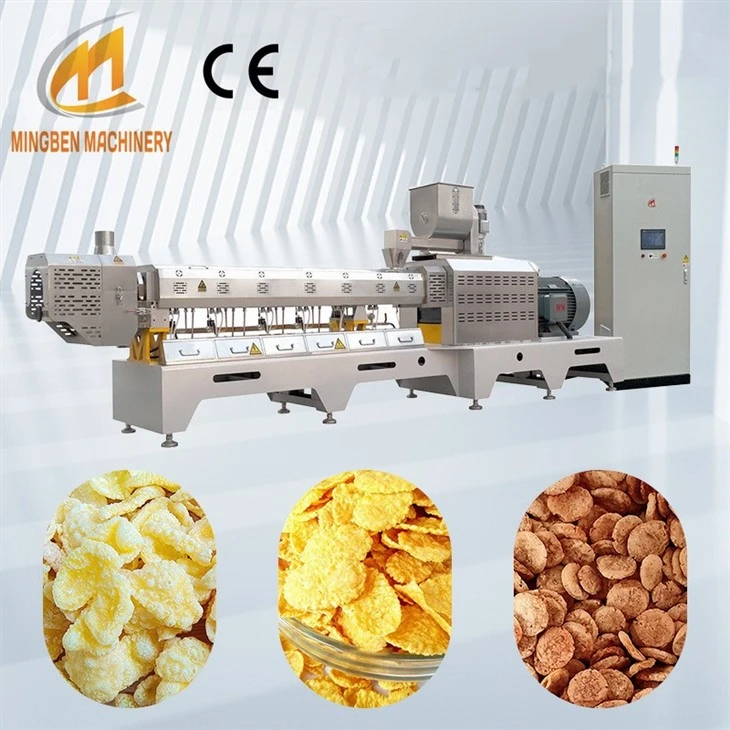

Breakfast Cereal Making Machine

M 65 Breakfast cereal making machine:100KG/H

M 75 Breakfast cereal making machine: 300KG/H

M 85 Breakfast cereal making machine: 500KG/H

The breakfast cereal making machine uses corn, rice, buckwheat, and various grains as single or compound raw materials. Through multiple processes such as ripening, granulation, pressing, and baking, the cereal raw materials are produced and processed into thin and crispy flakes. Due to the special processing techniques of screw extrusion and high-temperature baking, the product has a crispy taste and a pure aroma of grains, which can be used as snacks or as substitute food for brewing; It can be mixed with other dried fruits and nuts, or packaged separately as the final product for sale. Some well-known brands of breakfast corn flakes, fruit cereal, and other products that are currently highly popular among consumers are produced and processed using this technology. This production line has a high degree of automation, running continuously from raw materials to finished products without any need for manual operation. The continuous running time is not less than 72 hours, and there is no wastewater or waste discharge throughout the process; breakfast cereal making machine that comes into contact with food is produced and processed using food grade materials that comply with food safety production. The entire production line is customized with supporting plans and workshop layouts tailored to the actual needs of customers. The designed output ranges from 100 kilograms per hour to thousands of kilograms, supporting customized design and manufacturing.

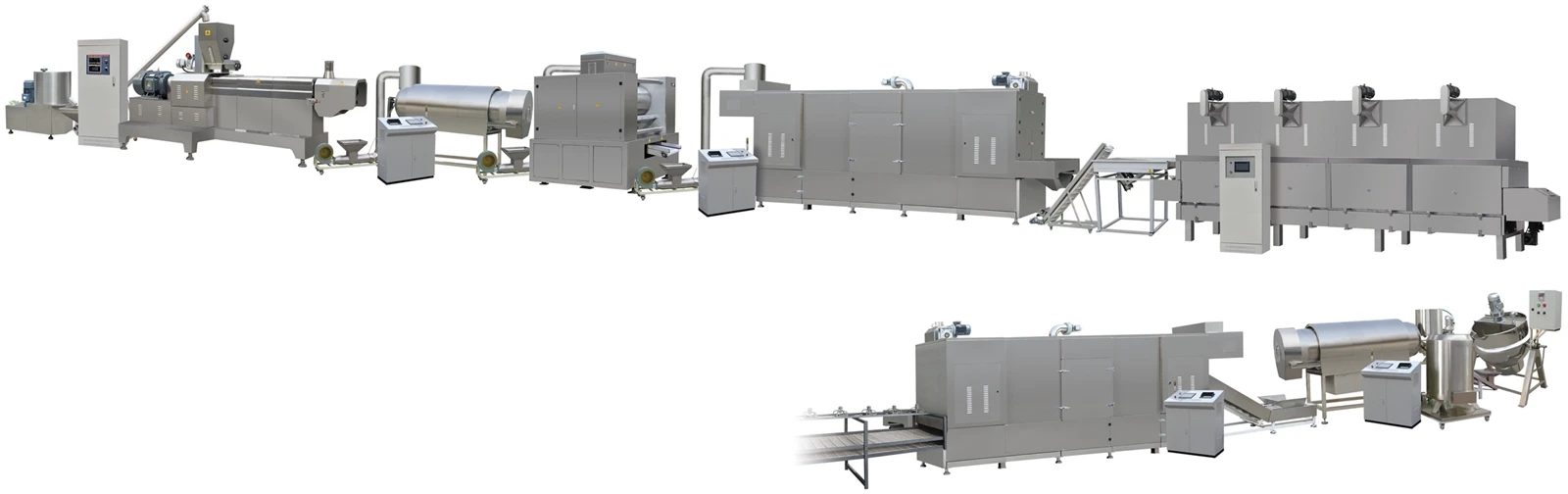

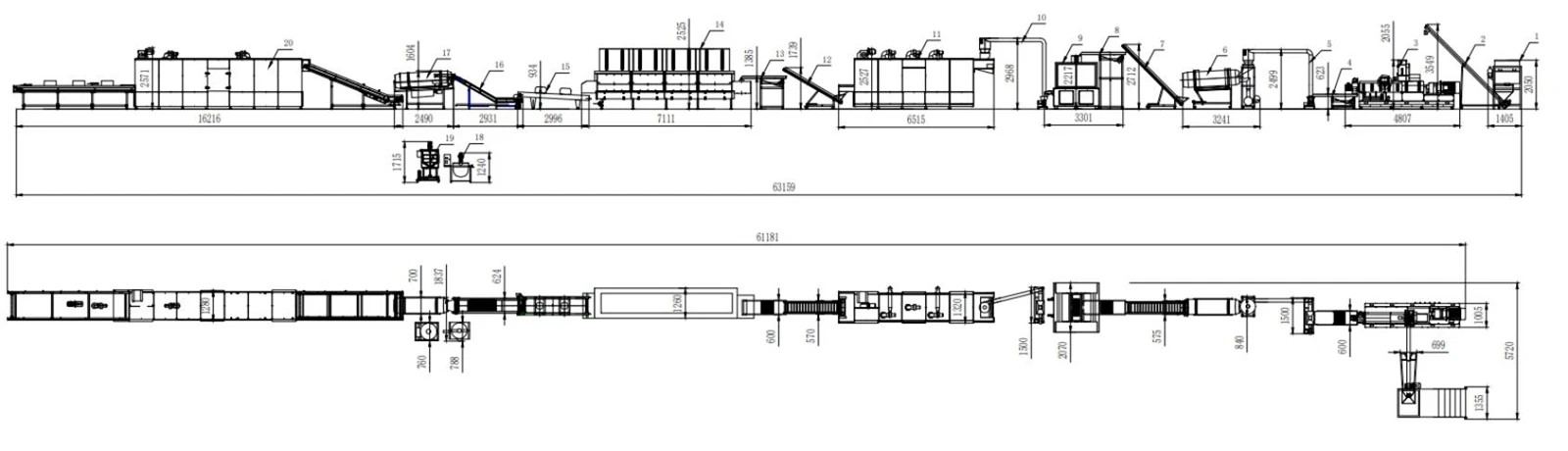

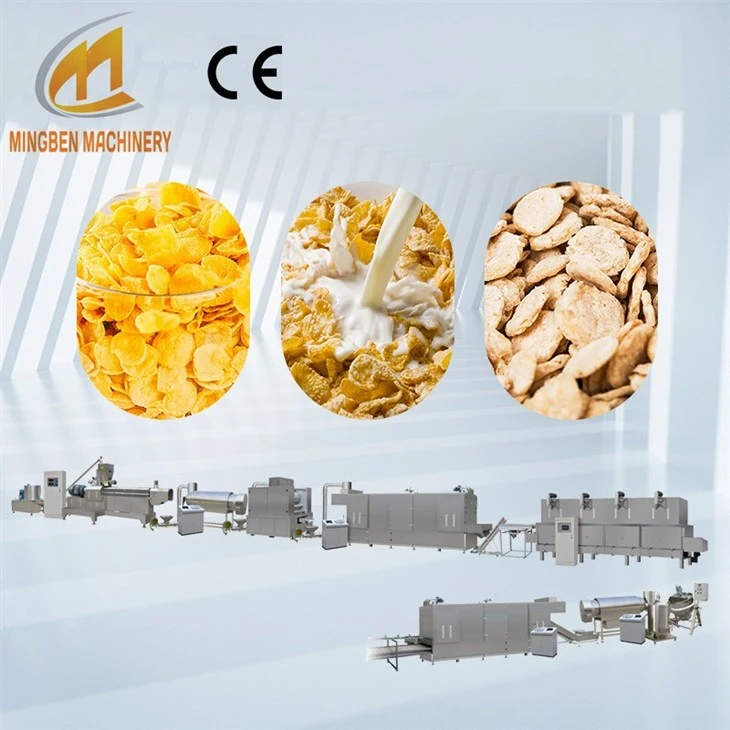

1. MIXER → 2. SCREW CONVEYOR → 3. DOUBLE SCREW EXTRUDER → 4. VIBRATING CONVEYOR → 5. AIR CONVEYOR→ 6. ROLLER DRYER → 7. AIR CONVEYOR → 8. VIBRATING CONVEYOR → 9. TABLET MACHINE → 10. AIR CONVEYOR → 11. OVEN → 12. HOIST → 13. VIBRATING CONVEYOR → 14. HIGH TEMPERATURE HOT AIR OVEN → 15. COOLING MACHINE→ 16. HOIST →17. SUGAR COATING ROLLER → 18. SUGAR MELTING MACHINE → 19. SUGAR SPRAYER → 20. DRYER WITH CONVEYOR AND COOLING

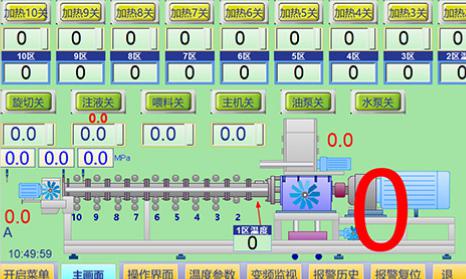

A. The independent control system adopts PLC touch screen display and control.

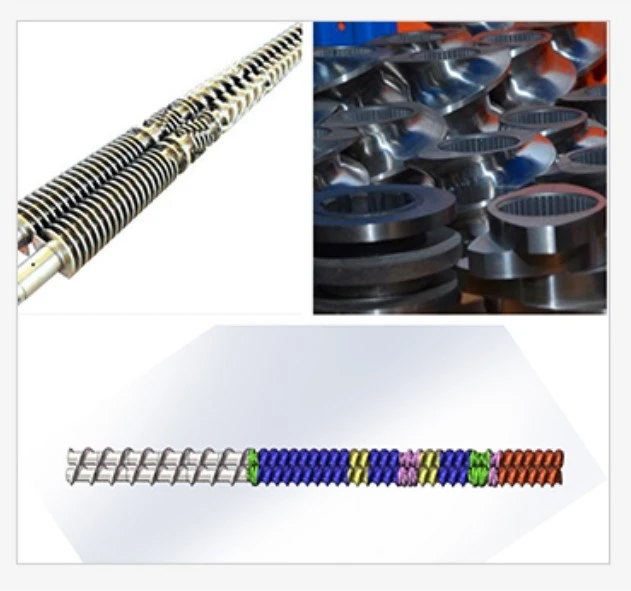

B. The extrusion system uses a modular combination of twin screws, made of 6542 material, which is hard and wear-resistant.

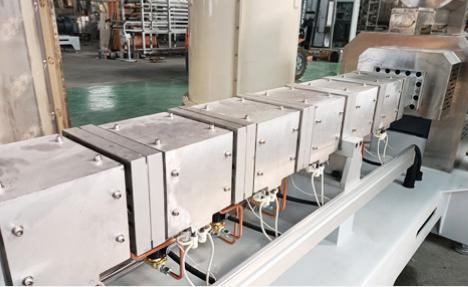

C. The extrusion system barrel adopts a square multi-stage design, and the barrel comes with a U-shaped circulating water way.

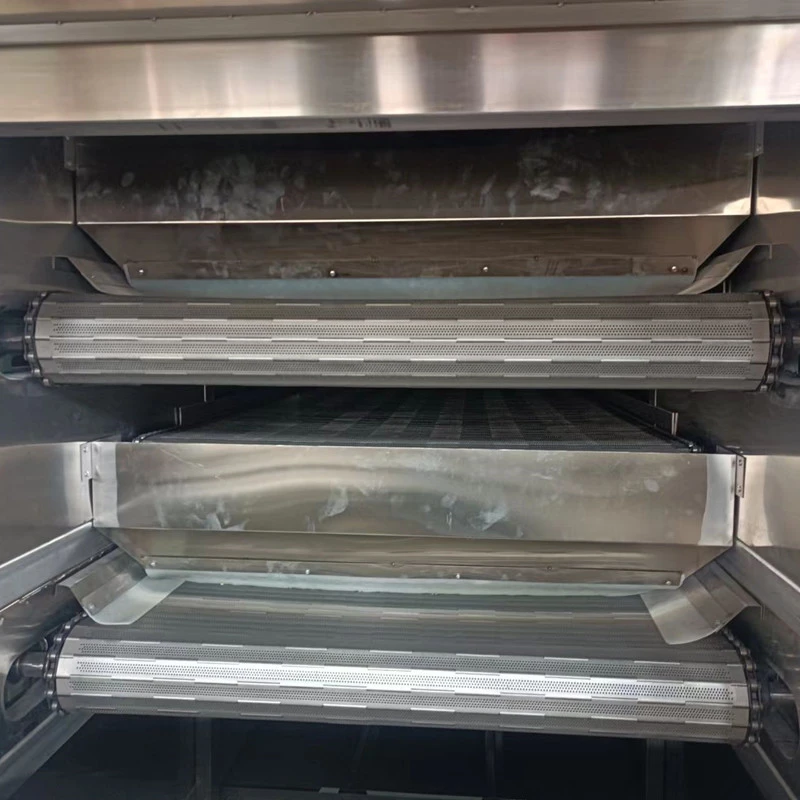

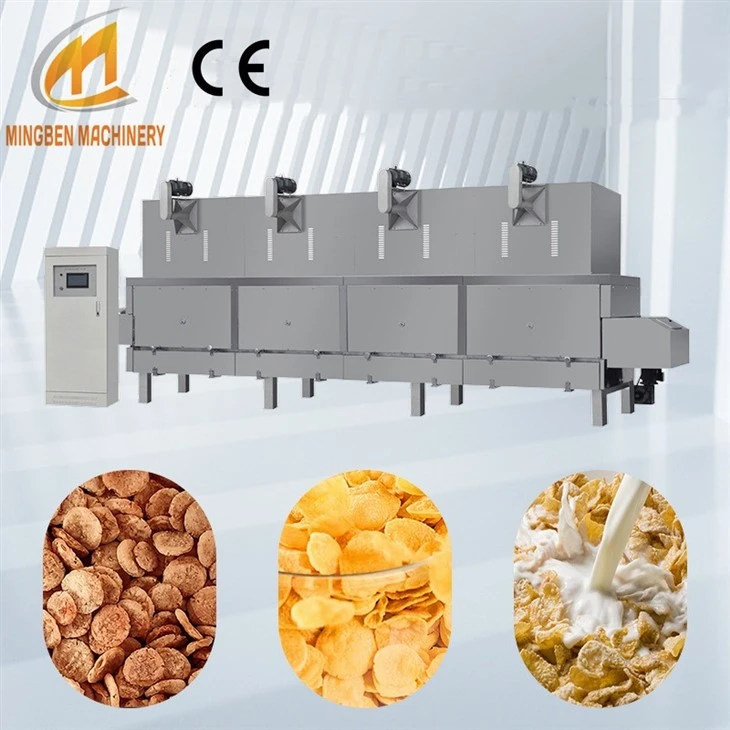

D. The drying oven and high-temperature oven are transported using 304 stainless steel plates, which will not be damaged.
