Nutrition Fortified Rice Making Machine

Nutrition Fortified Rice Making Machine

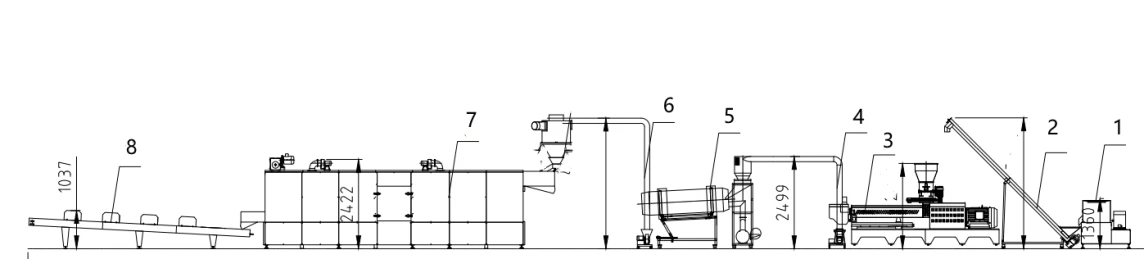

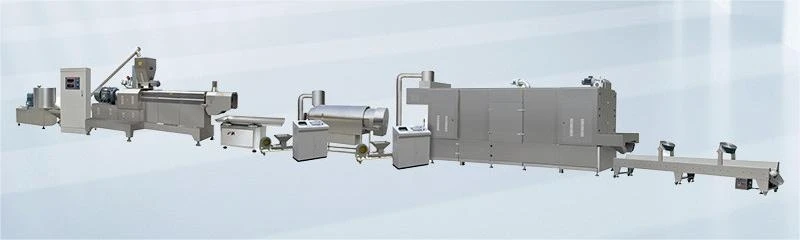

Big Mixer-Screw conveyor-Double screw extruder-Air convey-Drum dryer-Air convey-Roaster-Cooling conveyor

Product Overview

Nutrition fortified rice making machine is a product made from rice and various grain powders with a shape similar to rice. Various trace nutrients can also be added to the formula to balance and enrich the product's nutrition. The products of the nutrition fortified rice making machine are mostly used in meal replacement boxed meals, convenience foods, military rations, and outdoor food.

Main Machine Introduction

11 meters and 7 floors electric oven:

Laying 304 stainless steel mesh cloth
Baking temperature: ≤ 150 ℃
Number of reciprocating layers: 7 layers
Length: 11 meters
Transmission method: Variable frequency transmission
Dehumidification function
Heating method: Heating tube heating
Insulation layer specification: Aluminum silicate insulation layer
The new multi-layer penetrating reciprocating oven adopts the latest technology and is suitable for heating various heat sources such as electricity, steam, fuel, gas, and thermal oil. Using a high-power high-pressure fan, the hot air is sent through the main pipeline to the branch pipeline, and then to the heating pipeline through the branch pipeline. The heating pipeline uses a dense number of air outlets to act on the material. It has the advantages of strong penetration, energy saving, stable temperature, uniform heating, fast air supply, high thermal efficiency, etc. The temperature range is 40-150 degrees, and the drying time is 20-120 minutes. It can be used for drying various types of food

MT75 Twin screw puffing machine(500kg-700kg/h)

The whole machine includes: twin-screw extruder, screw feeder, and electrical control cabinet
External dimensions (length * width * height): 4500 * 1000 * 2000mm
Rated power: 88 kW
Design output: 500-700kg/h
dynamic system
Drive motor specification: 55kw
Drive motor brand: Liju
Squeeze system
Screw specifications: Building block combination double screw; Composed of 2 core shafts and various specifications of accessories such as screw sleeves, shear blocks, and resistance sleeves; Screw length 2170mm, diameter 75mm, screw aspect ratio 28:1
Screw material: alloy high-speed steel, with a hardness of about 62-64HRC
Machine barrel specification: square machine barrel; The barrel section consists of 7 sections
Temperature control system
Temperature zone division: 7 temperature zones
Temperature control method: The PLC temperature control module automatically controls the temperature; PID control logic
Heating method: Electric heating
Heating power: 30kw
Cooling method: water cooling
Control method: External touch screen control cabinet
PLC brand: Delta
Touch screen brand: Delta
Variable frequency drive brand: Panair
Brand of low-voltage electrical components: Chint
